Little-Endian Hex to Decimal Converter
The Little-Endian Hex to Decimal Converter reverses the byte order of the hex you paste into Hex Input (little-endian bytes) before reading it as a number — the way little-endian systems like x86 actually store values in memory. Click Convert and the correct decimal number appears in Decimal Output. Type a sentence into the text to binary converter and it writes out the binary code point behind every character instantly.
Understanding Little Endian Hex to Decimal Converter — Byte-Ordering Format Explained
What Does Little Endian Mean in Data Encoding?
At its core, little endian is a byte-ordering format used to organize multi-unit values in computer memory or data streams. In this arrangement, the least significant unit comes first—at the lowest memory address—followed by increasingly significant units. This is the direct opposite of big endian, where the most significant part appears first. While some architectures like Intel x86/x64 processors default to little-endian, others, such as some ARM architectures and network interfaces, use big-endian or even support both through unit swaps. The fastest way to turn a calendar date into a hex timestamp is the date to hex converter, with an option to output uppercase letters.
“Endianness” describes how values are ordered within larger information types—think of it as reading numbers from right-to-left (little endian) versus left-to-right (big endian). Accurate structure parsing relies on knowing the correct ordering.
Hexadecimal Values and Byte Orderings: A Visual Guide
Hexadecimal values represent numbers in base-16, making them compact for storing base-2 information. When stored in little endian, these values’ segments are reversed compared to big endian. For example, the hexadecimal number 0x12345678 is stored in memory as 78 56 34 12 in little endian and as 12 34 56 78 in big endian. This matters when using a hex to decimal little endian converter, as software has to reverse the groupings before interpreting the value as a decimal.
| Ordering | Hexadecimal (4 bytes) | Storage Order (bytes) | Decimal Number |
|---|---|---|---|
| Big Endian (High Byte First: ABCD) | 0x12345678 | 12 34 56 78 | 305419896 |
| Little Endian (Low Byte First: DCBA) | 0x12345678 | 78 56 34 12 | 305419896 |
Why Endianness and Byte Order Matter in Tech
Your choice of byte-ordering convention can impact everything from network interfaces (where big endian is sometimes called “network order”) to binary file formats, microcontroller programming, and exchange between processors. Misinterpretation can lead to incorrect number results, corrupted files, or failed integrations—making a hex calculator that supports both ordering conventions indispensable for engineering and system development.
- Intel x86/x64 processors: typically use little endian (LSB first).
- ARM architectures (default): traditionally support both, but are often little endian in consumer devices.
- Network and communication protocols: often specify order explicitly for compatibility.
- Binary file formats: may specify or require a particular convention for fields or metadata.
Decimal to Hex Little Endian Conversion: Your Step-by-Step Process Guide
Step 1: Input the Hexadecimal Values in Little Endian Order
To start the process, you need to input the hex values in little endian order. This means providing your hexadecimal input with the LSB first, e.g., for 0x3412 (2 bytes), the string should be entered as “34 12” (no “12 34” if little endian!). Be sure to account for leading zeros and boundaries—errors in the hex string or incomplete sequences can disrupt the result.
Step 2: Reverse the Structure and Combine as Big-Endian Hex
Once you have your hex string, reverse the order. For example, given the value 34 12, reversing gives 12 34. You now combine and interpret as a big-endian number—read as a standard hexadecimal, ready for calculation.
Tip: Each segment is two hex characters—if your string has an odd length, pad with a leading zero for correct format.
Step 3: Calculate the Decimal Value from the Combined Result
Finally, use a hex to decimal calculator formula or little endian hex to decimal converter algorithm to get the result. The formula in KaTeX for converting a little-endian hexadecimal value (represented as sequence of n pieces \(b_0,\,b_1,\, \ldots,\,b_{n-1}\)) is:
$$ \text{Decimal} = \sum_{i=0}^{n-1} b_i \times 256^i $$
Alternatively, use your favorite online hex calculator tool or hex & little endian converter for fast results—just make sure your formatting matches little-endian!
// Manual transformation pseudo-code example
function littleEndianHexToDecimal(hexStr) {
// Clean and split hex string into units
let parts = hexStr.match(/.{1,2}/g);
parts = parts.reverse(); // Reverse order
let bigEndian = parts.join("");
return parseInt(bigEndian, 16);
}
- Common errors: Odd-length hex strings, missing segments, non-hex characters, or entering big endian values by mistake.
- Check your length—2 units for 16-bit int, 4 units for 32-bit int, etc.
- Some converters let you select signed integers (two’s complement) or unsigned integers—choose accurately for signed numbers.
Hex Calculator in Action: Practical Decimal to Hex Little Endian Conversion Examples & Use Cases

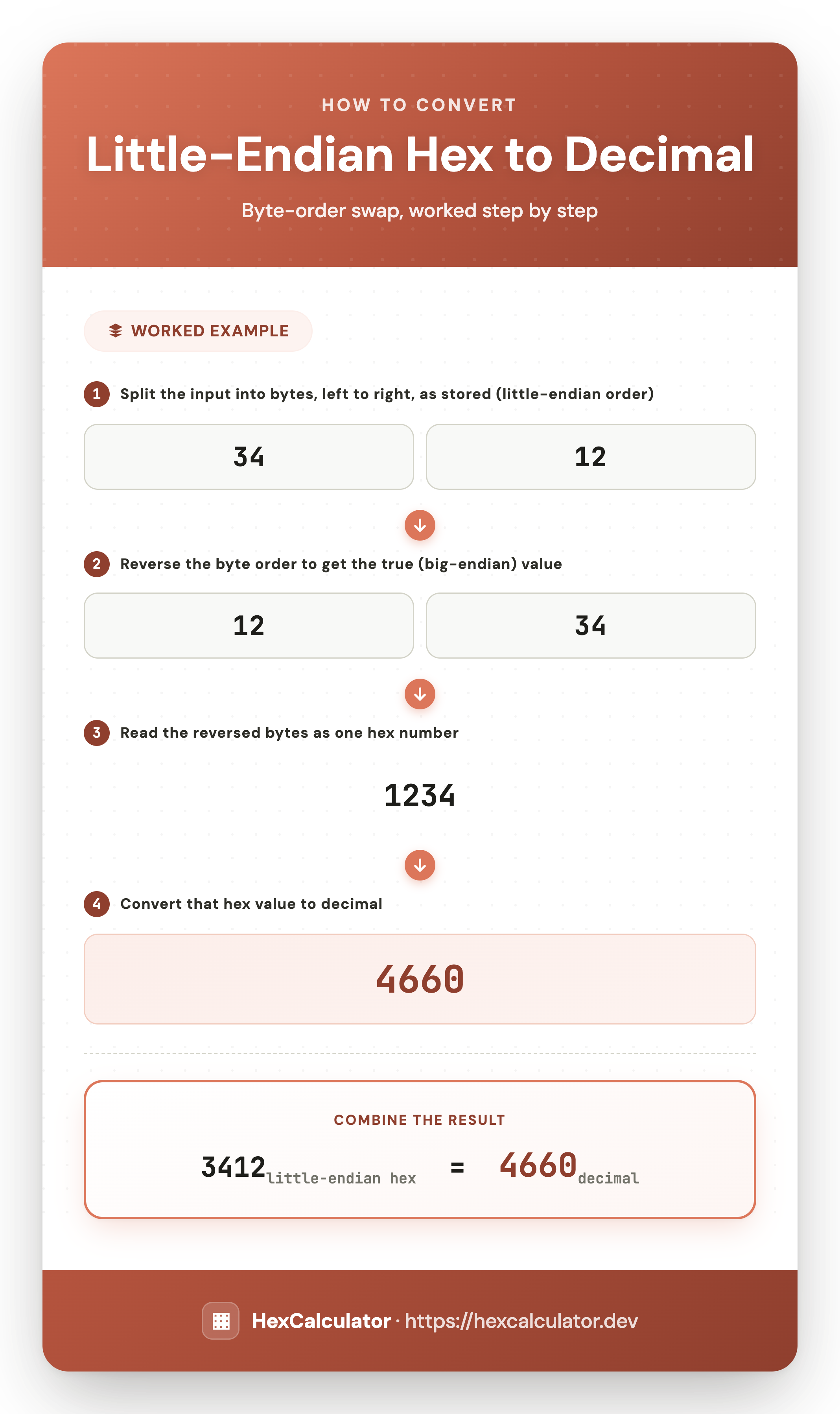

Sample 1: Basic Little Endian Hex to Decimal Transformation
Let’s step through a standard decimal to hex little endian conversion example. You have the little endian hexadecimal value 0x3412 (in raw memory, segments are 34 12):
- Input hex packs: 34 12 (little endian order)
- Reverse segments: 12 34 (big endian)
- Combine hex: 0x1234
- Convert to decimal:
$$ \text{Decimal} = 1 \times 16^3 + 2 \times 16^2 + 3 \times 16^1 + 4 \times 16^0 = 1 \times 4096 + 2 \times 256 + 3 \times 16 + 4 \times 1 = 4660 $$
You can verify this using a decimal to hex little endian converter, which will also handle different lengths or padded entries. The step-by-step process above ensures you avoid common mistakes.
Sample 2: Using Parser for Forced 4-Unit Length and Signed Integers
Suppose you are using a parser to extract a signed integer from a structure file with hex two’s complement calculator logic. Input: F4 FF FF FF (little endian representation of -12 as a 32-bit int):
- Input values in little endian order: F4 FF FF FF
- Reverse the structure: FF FF FF F4
- Combine hex: 0xFFFFFFF4
- Interpret as signed (two’s complement):
Calculate signed output:
$$ \text{Decimal} = - (2^{32} - 0xFFFFFFF4) = - (4294967296 - 4294967284) = -12 $$
Use Case: Reading from Binary File Formats in Game Save Editors and Instrumentation Applications
- Controller software: When reading sensor values or memory addresses from binary files, order is critical—especially when interfacing ARM architectures with intel x86/x64 processors.
- Reverse engineering / Data recovery: Analyzing binary game saves, network dumps, or device logs requires accurately reading little endian values for correct decimal interpretation and reliable save restoration.
- Network communication and PLCs: Protocol analysis tools and measurement frameworks often demand handling order, framing, and register word arrangement during machine reading.
- This tool is frequently used by game modders and editors to read, modify, or repack custom save files, ensuring compatibility after any modification or transfer.
| Data Type | Little Endian Units | Big Endian Units | Decimal Value (Signed/Unsigned) |
|---|---|---|---|
| 32-bit signed integer (int32) | F4 FF FF FF | FF FF FF F4 | -12 / 4294967284 |
| 16-bit unsigned integer (uint16) | 34 12 | 12 34 | 4660 |
| 32-bit float (float32, IEEE‑754) | DB 0F 49 40 | 40 49 0F DB | 3.1415927 |
Features and Advantages of This Little Endian Hex to Decimal Converter for Game Save Editors and Binary File Formats
Key Features
- Supports all major types: ints, uints, floats (IEEE‑754), and two’s complement numbers.
- Byte-order auto-detection: Seamless switching between little endian (low order first) and big endian (high order first) via explicit controls.
- Forced word length: Choose your output format for 8, 16, 32, or 64 bits; combine and interpret as a big-endian value.
- Free online hex calculator: No installation; real-time results for precise calculations.
- Handles negatives: Full support for hex to signed decimal and signed value to hex.
- Batch (multiple lines): Hex editor–style entry for converting sequences, ideal for parsing files or game saves. Many popular save editors integrate directly with this converter.
- Cross-platform compatibility: Equally effective for controller software, network protocols, and memory encoding on any device.
This converter integrates bitwise operations for maximum accuracy when converting values from one order to another. You can work directly with game save data or any binary save backup with consistent results.
Supported Types & Bit Widths
- 16-bit / 32-bit / 64-bit signed and unsigned integers (int16, uint16, int32, uint32, int64, uint64)
- Floating‑point values in single precision and double precision formats (float32, float64)
- Direct field selection for items from machine reading, transmitters, and protocol analysis
- Custom length and word arrangement for specialized industrial equipment or PLC registers
Platform and Compatibility Benefits
- Designed for low-level application and data recovery engineers
- Compatible with mod tools, game save converters, ROM patchers, and base-16 utility tools—editors can save time by quickly parsing and modifying binary game saves
- Trusted by developers analyzing game save files, historical content logs, or IIoT sensors—file save and restore functions integrate seamlessly with popular editors
- Extensive documentation and intuitive input formatting; fast copy result and clear output
- Deployable for data acquisition, device communication, or cloud-based applications—save, restore, and analyze any binary save instantly
| Feature | Little Endian Converter | Generic Hex Calculator |
|---|---|---|
| Endian Awareness | Little Endian, Big Endian, Byte Swap | Usually Big Endian Only |
| Multi-type Support | Signed/Unsigned, Floating-Point | Usually Integers Only |
| Batch Processing | Multiple Lines Supported | Single Number Often Only |
| Output Format | Configurable | Fixed |
| Usage | Binary File Formats, Little Endian Hex to Decimal Converter, Game Save Editors | General Hex Viewing |
