Decimal to Little-Endian Hex Converter
Enter a whole number into the Decimal Input field and the Decimal to Little-Endian Hex Converter encodes it as hex bytes in little-endian order — least-significant byte first. Click Convert and your byte sequence appears in Hex Output (little-endian bytes), ready for a memory dump or binary file format that expects it. Enter a hex value into the hex to int c# and click Convert to see both the integer result and its C# equivalent.
Understanding Decimal, Hexadecimal, and Decimal to Hex Little Endian Converter Representation
What is a Decimal Number?
The decimal system—also known as base 10—is the standard numeral system most people use in daily life. It uses digits from 0-9, where each digit’s position represents a different power of 10. For example, the decimal number example 1024 can be represented as:
1024_{10} = 1 \times 10^3 + 0 \times 10^2 + 2 \times 10^1 + 4 \times 10^0This number conversion system is intuitive for humans but not always ideal for computer memory or byte-level formatting.
What is Hexadecimal?
The hexadecimal (base 16) system is designed for memory encoding and compact representation. It uses 16 symbols (0–9 and A–F), each digit representing a power of 16. In the hexadecimal number example 1A316:
1A3_{16} = 1 \times 16^2 + 10 \times 16^1 + 3 \times 16^0 = 419Hexadecimal values are especially useful for displaying digital information, representing units of memory, and working across different solutions (like interpreting hardware addresses, offsets, or file formats). You’ll often see hex in ROM modding, device communication, and low-level engineering.
What Does Little Endian Mean?
Endianness determines how multi-unit values—such as 16-, 32-, or 64-bit numbers—are stored in memory. In little endian (LSB first), the least significant portion comes at the lowest memory address, while in big endian (MSB first) the highest-order part comes first:
- Little endian: 0x12345678 stored as
78 56 34 12 - Big endian: 0x12345678 stored as
12 34 56 78
Note: Endianness greatly affects interfacing between different processor architectures (e.g., Intel x86/x64 vs. ARM) and the correct interpretation of information from field hardware, digital formats, cloud infrastructures, and communication standards.
Understanding bit arrangements, byte significance, and byte-ordering format helps you avoid subtle engineering and address errors in complex workflows ranging from visualization to memory dumps and analysis. Little-endian hex is the standard for many modern computers and embedded modules.
How to Use the Decimal to Hex Little Endian Conversion Calculator
Key Features for Accurate Conversion
- Supports forced unit lengths—like forced 4 bytes for 32-bit values, or custom lengths for cross-platform testing.
- Handles both positive and negative decimal numbers using two’s complement (negative decimal to hex), essential for signed integers in memory.
- Multiple output formats: plain hex, concatenated, or prefixed (0x concatenated), all formatted for instant calculation or direct copy into code or editors.
- Byte-order formatting—reliably flips memory units to little endian (and back) for compatibility, mod utilities, or binary file editors.
- Practical use cases for ROM patching, game modding, IIoT device programming, checksums, and low-level reverse engineering.
Benefits include fast, accurate conversion with no risk of human byte-order mistakes, outputs compatible with online hex editors, and advanced calculator precision on large quantities up to 64 bits (and beyond for exponential notation or e notation values). Paste an 8-digit hex value into the hex to ip address converter and click Convert to get its IPv4 address equivalent.
Step-by-Step Usage Instructions
- Step 1: Enter the decimal number. Input a positive or negative decimal value or use exponential notation (e.g.,
4660or1.024e3). - Step 2: (optional) set output byte length for the hex number (e.g., 2 for uint16, 4 for uint32) to control byte-order compatibility or pad results as needed. If the number doesn’t fit in the specified width, an alert will show.
- Step 3: choose the output format: select your desired display (plain hex, units view, or 0x concatenated: output).
- Step 4: click convert (the blue convert button) for instant results. Click to copy result or clear the output in a single click for fast debugging or workflow integration.
Quick Conversion Table: Decimal to Hex Little Endian Mapping
Sample Decimal to Hex Little Endian Values
Below is a conversion table mapping selected decimal values to their little endian hexadecimal outputs (with both unit and concatenated formats):
| Decimal | Hex (Big Endian) | Bytes (Little Endian) | 0x Concatenated (LE) |
|---|---|---|---|
| 1024 | 0x0400 | 00 04 | 0x0400 |
| 255 | 0x00FF | FF 00 | 0x00FF |
| 4660 | 0x1234 | 34 12 | 0x3412 |
| 305419896 | 0x12345678 | 78 56 34 12 | 0x78563412 |
| -1 (int16) | 0xFFFF | FF FF | 0xFFFF |
| 0 | 0x0000 | 00 00 | 0x0000 |
This table demonstrates memory reversal on conversion and how each decimal value generates a unique hex string in little-endian hex order for storage and protocols. If a number doesn’t fit the chosen length, make sure to increase the unit count for accurate output.
Worked Conversion Examples

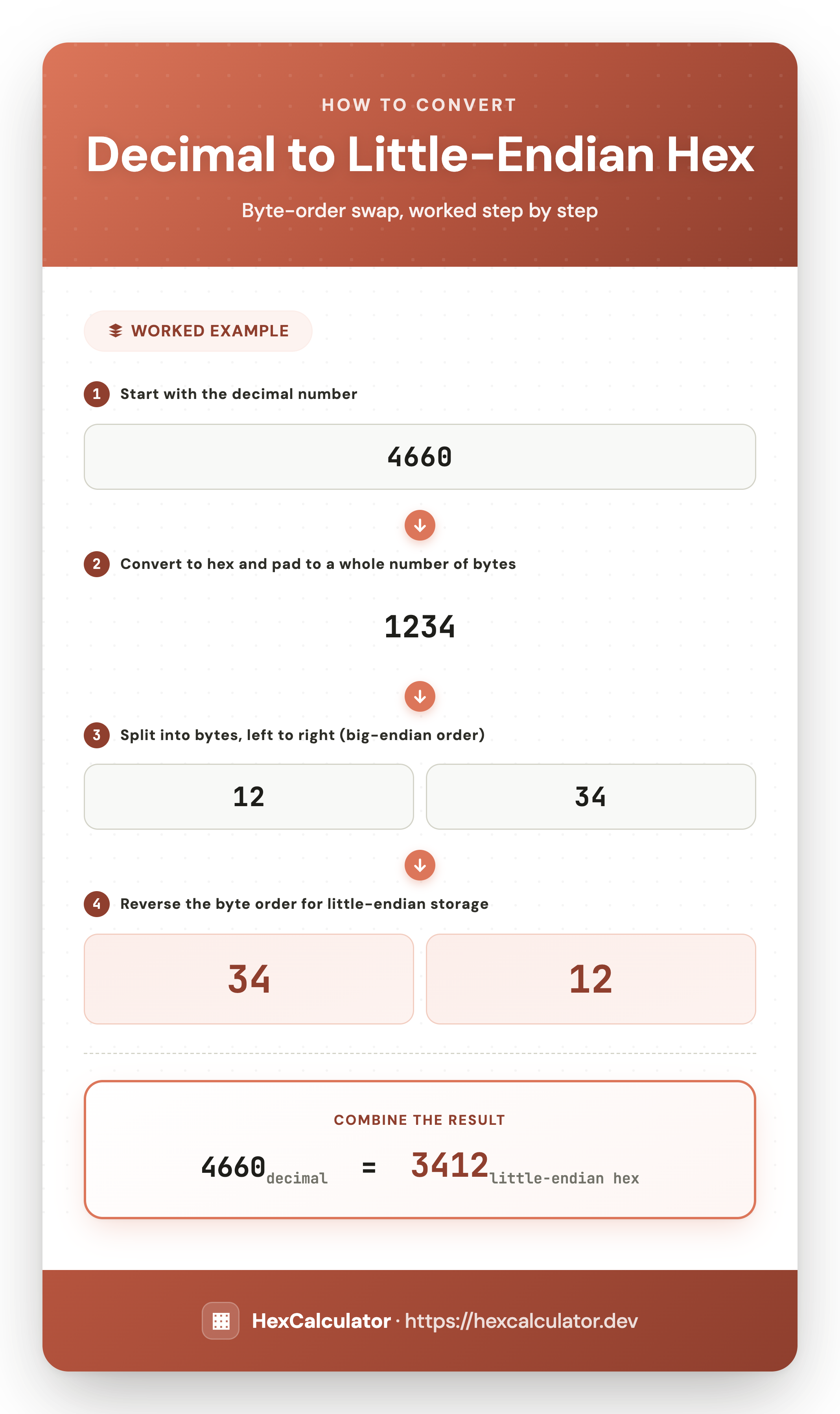

- Example 1: Convert decimal 4660 to little endian hex
- Identify known value: Decimal
4660 - Divide the number by 16: $$4660 \div 16 = 291\ \text{remainder}\ 4$$
- Next, divide the quotient by 16: $$291 \div 16 = 18\ \text{remainder}\ 3$$
- Continue until quotient is zero:
- 18 \div 16 = 1 remainder 2
- 1 \div 16 = 0 remainder 1
- Collect the remainders in reverse: 1, 2, 3, 4 → Hex:
1234 - Format as memory units in little endian: Bytes:
34 12| 0x concatenated:0x3412
- Example 2: Convert decimal 255 to 4-unit little endian hex
- Identify value and requirement: Decimal
255, units required: 4 (forced 4 units) - Convert 255 to hex: $$255 \div 16 = 15\ \text{remainder}\ 15 (F)$$
15 \div 16 = 0\ \text{remainder}\ 15 (F)$$
So, normal hex:FF - Pad hex to 4 units:
00 00 00 FF - Reverse for little endian: Bytes:
FF 00 00 00| 0x concatenated:0xFF000000
- Example 3: Convert negative decimal -1 to little endian hex (two's complement for 2 units)
- Select length: 2 units (16 bits).
- Compute two's complement: For -1 in 16 bits:
0xFFFF - Write in little endian order: Bytes:
FF FF| 0x concatenated:0xFFFF
Conversion steps always rely on division by 16, collecting the remaining value for hex at each step as a new hex digit, and repeat steps until the integer quotient is zero. For two’s complement, the hex calculator interprets negatives as bitwise complements for memory or processor storage. Use this approach to convert very large decimal numbers efficiently—especially when developing mods or working on branding for unique utility tools projects.
Common Uses & Related Tools for Hex & Decimal to Hex Little Endian Converter
When and Why to Choose Little Endian
The decimal to hexadecimal converter process is essential in embedded ui systems, engineering, and low-level development. Key reasons include:
- Most Intel x86/x64 processors and ARM architectures use little endian for internal memory encoding.
- Binary standards and field device firmware demand the correct ordering to interpret sensor data or network streams.
- ROM patching, PC game modding, and checksum calculation depend on this converter for correct value interpretation and editing.
- Parsing digital formats, performing reverse engineering, and protocol analysis all require accurate bit significance and correct encoding direction.
- Ensuring data integrity in cloud-based IIoT deployments when sensors and platforms are networked across different infrastructures with mixed little endian implementations.
Why use decimal to hex little endian converter? Because mismatched endianness causes value corruption, misread memory values, and faulty device control—critical in industrial, analytics, and visualization branding.
Other Useful Conversion Utilities
- Hex to decimal little endian—for when you need to read little-endian memory dumps or device outputs.
- Decimal to hex converter—swap easily between hex and decimal for address calculations and checksum verification. This free online hex converter is best for embedded development, enabling you to convert decimal numbers and copy results with one click.
- Hex bitwise calculator & hex shift calculator—for microcontroller, mod, and editor code manipulation.
- Hex to binary encoder—decode device standards or analyze memory structures fast.
- IEEE 754 converter—interpret floating point values stored as hex or binary.
- String to hex converter—see how text or field configurations are encoded at the memory level.
- Octal converter, fraction converter, percent converter—full stack of number conversion and memory formatting utility tools for all numeral systems.
Hex Converter Resources and See Also
- Decimal to hex little endian converter tool—your go-to for byte-order swaps and memory analysis. Use it to convert very large decimal numbers for protocols, best for embedded development across mod and engineering projects.
- Hex to negative decimal—decode signed values stored in two’s complement format.
- Ascii text to hex—visualize how text strings are encoded into hex values for devices or checksums.
- RGB to hex—convert colors in design or web-to-paint branding.
- Hex to decimal converter and hex to binary converter—ideal for communication or hardware debugging.
- Hex two’s complement calculator—convert negative decimal numbers for bitwise and binary analysis.
- Hex calculator—for advanced, multi-format hex and digital operations.
- Fraction converter—for applications requiring exponential notation, e-notation, ppm, ppb, or ppt level conversion.
For additional technical reference, visit the Wikipedia articles on About hexadecimal and About little-endian. Explore ROM mod, editor, parser, and checksum utility tools for every platform and application type.
