Hex to Decimal in AWK

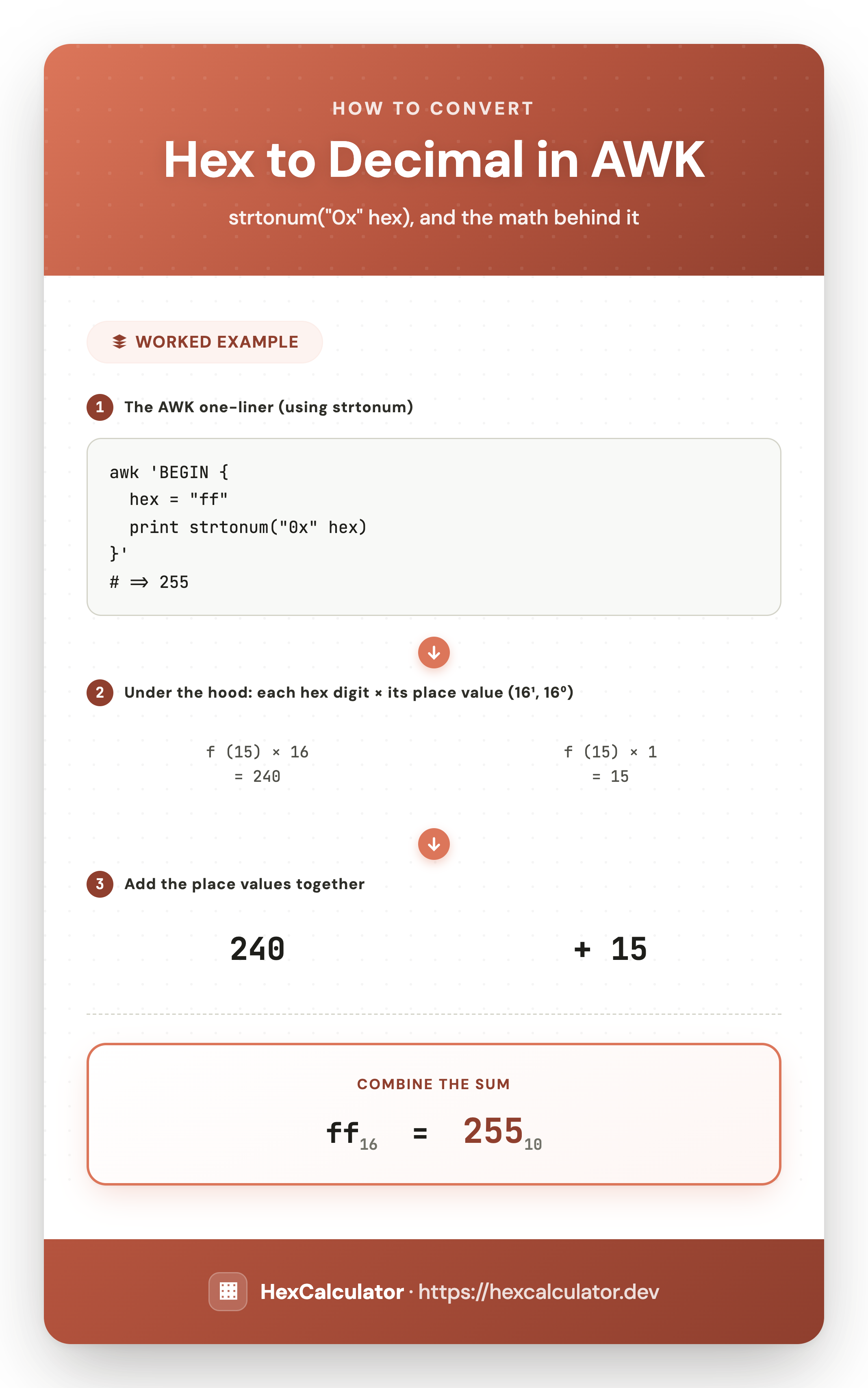

The Hex to Decimal in AWK tool converts the value in Hex Input into Decimal Output, and shows the AWK one-liner (using strtonum) that performs the same conversion at the command line. Click Convert to see your result plus the exact snippet to reuse in a shell script. For working with systems that encode numeric IDs in Base36 for compactness, the base36 to hex converter converts them back to standard hex.

AWK
echo "ff" | awk '{ printf "%d\n", strtonum("0x" $1) }'
# 255

Hex to Decimal Conversion Techniques in AWK Scripts

Using AWK’s Built-in Capabilities for Hexadecimal Inputs

When working with awk, your first instinct for turning a hex string like ff1ac5ff into its corresponding decimal number may be to write:

echo ff1ac5ff | awk '{printf "%d\n", $1}'

However, this doesn’t yield the expected result because awk does not perform automatic hexadecimal to decimal conversion when the field appears as a string without a format prefix. In standard awk syntax, numeric handling for hex only happens when the string begins with "0x", forming a hexadecimal literal. Here is an example that forces proper conversion:

echo ff1ac5ff | awk '{printf "%d\n", ("0x" $1) + 0}'

This appends 0x to your value and then adds 0 to prompt awk to treat the string as a hex literal, triggering the internal operation to a decimal number. This is the core method recommended in many awk community scripts and is compatible across several awk variants, including gawk and nawk. Always remember: for a hexadecimal number not already prefixed, you must prepend 0x to guide awk’s parser.

AWK printf and Formatting for Hex to Decimal Outputs

The printf command in awk is commonly used for formatting output. Its usage with %d expects numeric input, so it's crucial that any hex string has already become a valid value. The pipeline below shows a well-functioning pattern:

echo ff1ac5ff | awk '{printf "%d\n", ("0x" $1) + 0}'

This one-liner effectively handles many hex to decimal in awk scenarios with awk, using awk '{printf "%d\n", $1}' in certain contexts for direct output.

The printf routine, alongside variable assignment, also enables custom output formatting, such as setting field widths or zero-padding, which is useful in data processing or reporting contexts.

Processing Decimal Numbers and Hexadecimal Strings in Streams

AWK is powerful not just as a file processor, but also with data piped from the command-line or generated in real time. Consider scenarios where streams contain a mix of decimal numbers and hexadecimal strings:

  • Your input format might be: 0x7A9A, ff1ac5ff, 1234
  • You may need to parse groups of four hex digits. Often, such groups of four are used as logical blocks in protocols or memory dumps, and correctly recognizing these groups of four is crucial to parsing tasks.

Here, leveraging awk regex or field separator logic lets you distinguish and process each value appropriately, converting hex substrings as needed. You can use substr for per-character analysis or regex to pick out non-decimal tokens. This streamlines hexadecimal parsing with awk and keeps your scripts resilient to mixed input data.

The Role of AWK Variable Assignment and Built-in Functions

When transforming hex values, variable assignment in awk becomes essential. Assigning a computed value to a variable enables multi-step processing. For example, you can accumulate the decimal result via repeated application of the classic hex to decimal in awk process, multiplying by 16 and adding the value of each digit.

Some newer AWK versions, like gawk, include strtonum(), which automatically parses a hexadecimal string such as "0xFF1AC5FF" to the correct value. However, this isn't portable to all implementations, so for broad compatibility, the manual methods remain best practice.

Worked Example: Reading Hex Numbers from a File

  1. Suppose you have a text file hexdata.txt:
    ff1ac5ff\n7A9A\n1234
  2. Run this command:
    awk '{printf "%d\n", ("0x" $1) + 0}' hexdata.txt
  3. How it works: On each line, awk prepends 0x to the input string, converts it to a decimal number, and prints it. If a line contains a regular decimal, the result remains valid.
  4. Sample Output:
    4279944703\n31386\n4660

This approach is widely cited in awk help contexts and remains a classical method for hex to decimal in awk transformations and will let you convert a hexadecimal string into a decimal number with clear results.

Parsing Command-Line Hex Input with AWK One-Liners

For quick conversions of standalone hex strings, a concise one-liner suffices. For example:

echo ff1ac5ff | awk '{printf "%d\n", ("0x" $1) + 0}'

Alternate tools like bc or dc can also handle this:

  • echo "ibase=16; FF1AC5FF" | bc produces 4279944703
  • echo 16i FF1AC5FF pq | dc similarly outputs the decimal result

This method, using bc and dc, is particularly useful for numbers larger than a double-word or when you require no limitations on number length. If you need awk portability, stick with the awk solution, but another tool may be appropriate for extreme cases. If you are coming from a dos background, this pipeline is very similar to classic ASCII conversion operations in shell scripts.

How to Convert a Hexadecimal String Into a Decimal Number Using AWK: Advanced Strategies and Considerations for Hex to Decimal in AWK

Classic AWK Functions for Hex to Decimal Calculations

For full control or where maximum portability is needed (for example on older Solaris systems or environments with strict awk restrictions), write your own routine as demonstrated in renowned hex2dec.awk scripts: The hex bitwise calculator runs an AND, OR, or XOR operation between two hex values and returns the result in hex.

function hex(x) {
value = 0;
i = 1;
n = length(x);
while (n > 0) {
value = 16*value + decv[substr(x,i,1)];
n--;
i++;
}
return value;
}

This user-defined routine uses substr to process each character, multiplies the number by 16, and adds the current digit’s value. The decv array assigns values to each valid hex digit—both lowercase and uppercase.

Such a manual approach is reliable for scripting with awk, nawk, or gawk. It is foundational for deeper awk script examples where octal and hex numbers must be parsed by hand, especially before awk strtonum became prevalent in some implementations.

Hexadecimal Parsing in Mixed Data Streams

Suppose your input data is mixed: 12A 7C7B 900AFB, where some fields are hex, some are decimal. Here’s an example to convert a hexadecimal string into a decimal number using awk only on fields matching hex patterns:

  1. Use a regex: /^[0-9A-Fa-f]+$/ to decide if the field is a hex string.
  2. Apply: awk '{for(i=1;i<=NF;i++) if ($i ~ /^[0-9A-Fa-f]+$/) printf "%d ", ("0x" $i)+0; else printf "%d ", $i; print ""}'
  3. This loop checks each field, performs the parsing on hex-like fields, and prints the output.

Whenever you need to convert a hexadecimal string into a decimal number, remember this loop structure. It helps tackle the common problem of heterogenous data types in a single dataset which is a common problem for log parsers and system administrators. The use of groups of four hex digits is especially handy when a protocol specifies such segments.

Compatibility Issues: nawk, gawk, and strtonum

While awk’s classic trick works across many environments, you should be aware of the differences among awk, nawk, and gawk. For example, on Solaris or Unix variants with legacy awk, proper conversion may only work if you use nawk or gawk, not the system’s basic awk implementation:

  • echo ff1ac5ff | nawk -f hex2dec.awk
  • echo ff1ac5ff | gawk -f hex2dec.awk

Modern gawk includes strtonum(), allowing you to safely write: printf "%d\n", strtonum("0x" $1). This method simplifies awk string to number tasks, but do not depend on it in portable scripts. Reference the awk faq for updates on which versions support it. When you convert a hexadecimal string into a decimal number using awk, always check which awk implementation you are using.

Common Problems and Pitfalls in AWK Hexadecimal Conversion

Hexadecimal parsing awk strategies must address edge cases:

  • If your input includes a string longer than 8 characters, be careful with very long hex inputs, as some awk versions have limits (e.g., TAWK can only process numbers up to a double-word).
  • Always strip whitespace or invalid characters: a hex representation like 0xGHIJKL will fail.
  • If your field separator is not whitespace, adjust awk field separator settings accordingly using FS= or -F.
  • Non-prefixed numbers can sometimes be misread as decimal numbers if you don’t prepend 0x.

Because automatic hex to dec conversion is not always performed, the best practice is always to craft your awk script to explicitly parse expected input formats. Refer to awk troubleshooting threads on StackOverflow and the mailing list for community fixes to such common problems. These are common problems when you convert a hexadecimal string into a decimal number using awk.

Community Solutions and AWK Best Practices for Hex Conversion

AWK users have contributed several hex2dec.awk scripts and patterns, many referenced in community awk faqs and awk help www pages. The most robust solutions are:

  • Manual parsing with substr and lookup table: handles arbitrary-length values and is portable.
  • String concatenation and value coercion: ("0x" $1) + 0 or with strtonum() in modern gawk.
  • Fallback to bc or dc: for numbers larger than a double-word, use: echo 16i FF1AC5FF pq | dc for unlimited values.
  • Use of classical method: multiplying by 16 and adding digit value, explicitly iterating over string characters.
  • Checking for hexadecimal literal patterns: Always ensure input is valid before translating for reliable scripting.

On StackOverflow and in the awk mailing list, you’ll find variations addressing input encoding (ascii, octal), awk expr and constructing routines specific to a given field separator or column structure. Check awk help www pages for more real-world usage.

Worked Example: Parsing Mixed Hex and Decimal Data

  1. Sample Input Stream:
    echo "91ff 42 2a df01 8" | awk '{for(i=1;i<=NF;i++) {if ($i ~ /^[a-fA-F0-9]+$/ && length($i) > 2) printf "%d ", ("0x" $i) + 0; else printf "%d ", $i}}'
  2. Logic: Each field matching a hex-like pattern (e.g. longer than 2 characters and containing hex digits) is parsed as hex.
  3. Output: The command prints each converted decimal number in-line, preserving column positions. The use of groups of four is useful when you have aligned memory or packet layouts.

This method is efficient for processing logs or mixed data sources during real-time awk data processing. Since awk can convert decimal number to hex and back, you may chain output routines for comprehensive audits. And as always, review awk help www pages for advanced scripting patterns.

Portability, Scripting Tips, and Best Practices

For ultimate reliability in shell hex conversion, always:

  • Test scripts with awk, nawk, and gawk if cross-platform compatibility is required.
  • Document any use of non-portable routines like strtonum() for future maintainers or when publishing awk community scripts.
  • Handle very large numbers with bc or dc where necessary, especially if input may be larger than a double-word.
  • Validate your parsing logic with edge cases—ensure your conversion doesn’t silently fail on malformed input.
  • Always refer to awk faq and awk help sources for updates or new features in your preferred awk implementation.

Finally, remember that converting hex strings in awk may involve subtle nuances in field parsing, handling of hex numbers, and attention to awk compatibility. By internalizing these awk tips, you will enhance your data pipeline's robustness and confidence in numeric translations—key to professional programming and scripting work.
