Hex to IP Address Converter

The Hex to IP Address Converter reads an 8-digit hex value from your Hex Input field and converts it into a dotted-decimal IPv4 address. Click Convert and the address appears in IPv4 Address Output. The binary to decimal converter handles multi-line and large binary values, converting each one to its decimal equivalent right in your browser.

Understanding Hexadecimal IP Addresses: A Complete Guide (online hex to ip converter)

What Makes an IP Address Unique?

An IP address is the cornerstone of modern connectivity, uniquely identifying every device—be it a desktop, a mobile device, or an embedded system—in a subnet or across the internet. In IPv4 format, this reference contains 32 bits and is usually shown in dot-decimal notation, like 192.168.0.1. Each octet (the numbers between the dots) ranges from 0 to 255 and corresponds to eight binary digits. This representation is intuitive for humans while being highly structured for protocols and machines.

How Hexadecimal Notation Applies to IPs

Unlike the familiar dot-decimal style, a hexadecimal ip address expresses the same information in base-16, using characters 0-9 and A-F. This hex format compresses a standard ipv4 address—for example, 192.168.1.1—into just C0A80101. Each pair of hex digits represents one octet. For computers, hex numbers can be parsed and stored more efficiently, and in firewall configuration files or embedded systems, hexadecimal is a common internal format due to its direct relationship with binary and memory layout.

  • Binary form: 11000000.10101000.00000001.00000001
  • Hexadecimal form: C0.A8.01.01 → C0A80101
Q1: What is a hexadecimal ip address? It's a 32-bit identifier represented in base-16 notation—each of the four decimal octets is converted to two hexadecimal digits, resulting in a total of 8 hex digits for the IPv4.

Why Convert Hex to IP?

Raw hex numbers are common in traffic tools, API logs, and quality assurance utilities. Often, logs and configuration scripts output the IP in hexadecimal values rather than dot-decimal, especially when interacting with system archives or network endpoints. For web developers and programmers, quick decoding from hex to human-readable ip address is vital for troubleshooting and ensuring legitimate referencing in scripts, firewall rules, and cross-system integrations.

  • Validating entries in cross-browser testing environments
  • Reverse engineering network packets
  • Converting legacy firewall configuration archives
  • Debugging embedded network devices

Step-by-Step: Converting Hex to IP Address (convert hex to ip)

Manual Hex to IP Conversion Process (ip address)

You can convert hex to an ip address with a step-by-step conversion that matches what the hex to ip converter online does automatically: Use the pantone to hex converter to get a close hex equivalent when you only have a Pantone name like Pantone 186 C to work from.

  1. Obtain the hexadecimal value (e.g., C0A80101).
  2. Split the 8-digit hex string into four parts: C0, A8, 01, 01.
  3. Convert each hex octet to decimal:
    • C0 → 192
    • A8 → 168
    • 01 → 1
    • 01 → 1
  4. Combine the decimal values with dots: 192.168.1.1
// Illustration
Hex: C0A80101 (in base-16)
192 (C0 in hex) . 168 (A8) . 1 (01) . 1 (01)

Split and Convert: Breaking Down the Hex String (hexadecimal)

The hexadecimal to ip method always requires you to split the 8-digit identifier. Each octet is two digits:

// Split C0A80101 → C0 A8 01 01
// Convert each component via hex to decimal
C0 = 192
A8 = 168
01 = 1
01 = 1

The relationship is direct: Hex = 0xC0A80101 → IPv4 = 192.168.1.1. The calculation is:

$$ \text{Each octet} = \text{Decimal}(\text{HexPair}) $$

If you want the reverse, you’d use ip to hex converter or deduce each octet’s decimal to hex equivalent.

Formula:
Given hex H = h_1h_2h_3h_4h_5h_6h_7h_8, IP is int(h_1h_2).int(h_3h_4).int(h_5h_6).int(h_7h_8)
Ex: C0A80101 → 192.168.1.1

Common Pitfalls: Leading Zeros, Valid Characters (ipv4)

  • Input too short or too long: An IPv4 identifier in hex must have exactly 8 digits. Fewer or more means the sequence is malformed.
  • Invalid characters: Only hexadecimal characters 0-9, a-f, A-F are permitted. Typing G or other symbols creates errors.
  • Missing leading zeros: If a hex pair for an octet is only one digit (like A8F101), pad it: 0A8F1001.
  • Case-sensitive: While hex format is not case sensitive, some parsers may treat it as such in records processing.
// Error handling illustration
if (value.length !== 8) {
  throw 'input too short or too long: must be 8 hex digits';
}
if (/[^0-9a-fA-F]/.test(value)) {
  throw 'invalid characters: only 0–9 and a–f allowed';
}

Hex to IP Converter Online: Efficient Automated Tool (hexadecimal to ip)

How the Converter Works Under the Hood (hex numbers)

The hex to ip converter uses straightforward logic to process hex numbers. Each pair of characters is interpreted as a hexadecimal value and instantly converted. For batch operations or uploads, an online hex to ip converter can process numerous designations simultaneously—ideal for network administrators and web developer tools. When you're building test data for a binary protocol, the decimal to little endian hex converter generates the correct little-endian hex byte order for any decimal value.

// Pseudocode
For each 8-digit hex value in input:
  Split into four pairs
  Convert each pair to decimal
  Join with dot for final IP
  • Accepts 0x-prefixed hex values (e.g., 0xC0A80101).
  • Handles dot-separated hex IPs: 7f.00.00.01.
  • Integrates with endpoints and batch scenarios.

Input and Output Formats (ip)

Input: Paste your hex ip address as an 8-digit value, optionally separated (0A.8F.10.01) or with 0x prefix. The converter adapts to all standard encoding forms.

Code Example: Convert 0xC0A80101 to an IP
Input: 0xC0A80101
Output: 192.168.1.1

Output: The result is always in dot-decimal format: xxx.xxx.xxx.xxx. If the value was uploaded, the tool produces a list of readable IPs for further validation or use in firewall configuration.

Pro Tips for Accurate Conversions (decimal)

  • Always check for missing leading zeros: Inputs like A8F101 must be 0A8F1001 for an accurate conversion.
  • Use batch mode for multiple hex numbers—this utility saves time for large subnet migration tasks.
  • For hexadecimal to decimal converter and hexadecimal to binary converter needs, see the related resources.
  • When automating, remember the difference between numerical format and hex—don’t mix notations in endpoints or data exchanges.

Practical Conversion Examples and Common Use Cases (hex to ip converter tool)

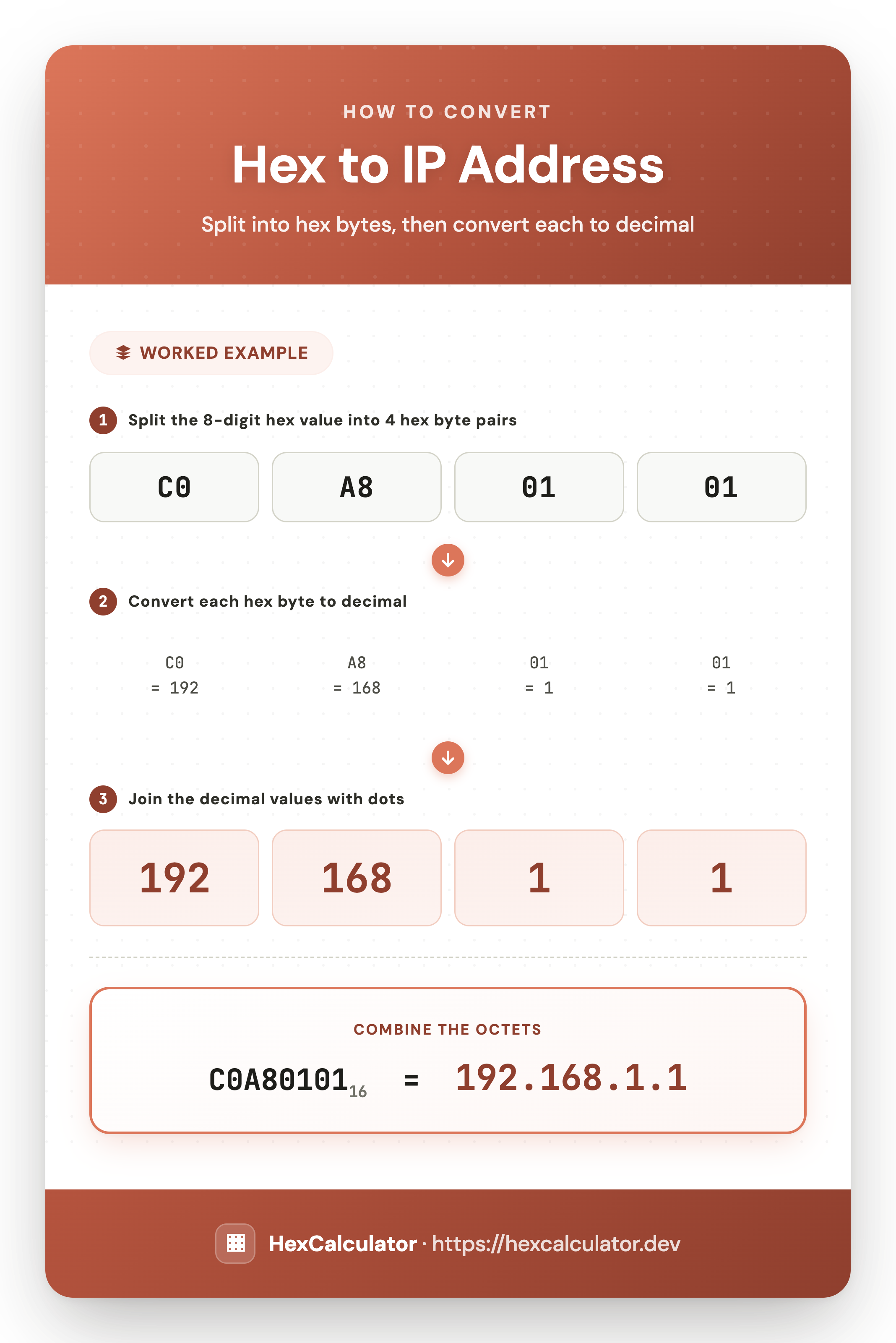

Example 1: Standard IPv4 Conversion (octet)

A demonstration: Converting C0A80101 to 192.168.1.1
Source (hex): C0A80101
Split: C0 | A8 | 01 | 01
Decimal: 192 | 168 | 1 | 1
IP Address: 192.168.1.1
  1. Obtain hex value: C0A80101
  2. Split the 8-digit sequence: C0 A8 01 01
  3. Convert each hex octet to decimal: 192 168 1 1
  4. Combine the decimal values: 192.168.1.1

Example 2: Dealing with Missing Leading Zeros

Handling value like A8F101
Source (hex): A8F101
Pad to: 0A8F1001
Split: 0A 8F 10 01
Decimal: 10 143 16 1
IP Address: 10.143.16.1
  • Missing leading zeros: Add zeros at start for 8 total digits.
  • Validate manually before using these tools.

Example 3: Converting Return Values in Software Testing

When automating scenarios in writing browser tests or response simulations, you might get hex outputs like 0x7f000001.

Converting for cross-browser testing scenarios
Source (hex): 0x7f000001
Remove prefix: 7f000001
Split: 7f 00 00 01
Decimal: 127 0 0 1
IP Address: 127.0.0.1
When validating hex IPs in browser and proxy testing, always check hex numbers for standard referencing.

Other real-world uses include:

  • Firewall configuration where IPs appear in hex
  • Parsing network traffic for embedded systems
  • Interpreting log data in windows, mac, or linux environments
  • Bulk transformation in code or batch scripts

Troubleshooting, FAQs & Related Tools (hex to ip)

Quick Fixes for Common Input Errors (testing)

// Input too short or too long:
// Must be exactly 8 hex digits for IPv4.

// Invalid characters:
// Accept only 0–9, a–f, A–F. No spaces, newlines, or punctuation.

// Missing leading zeros:
// Pad hex values to 8 digits (e.g., F101 → 0000F101)
  • input too short or too long: Check length before pasting into the converter.
  • invalid characters: Accept only valid hex digits.
  • missing leading zeros: Confirm your value is padded to eight digits.

FAQs — All About Hex and IP Conversion

  • Q1: What is a hexadecimal ip address? It’s a base-16 representation of a 32-bit ipv4 number.
  • Q2: Can I use this for ipv6? Most tools focus on IPv4; IPv6 conversion typically requires 32 hex digits.
  • Q3: Are hexadecimal and decimal forms interchangeable? Only after proper conversion; use hex to decimal ip converter or ip to hex converter tools.
  • Q4: Are hex values case sensitive? Not generally, but avoid mixed case in uploads.
  • Q5: Can this be used for personal use only? Yes—whether learning or developing, no account needed.
