Signed Integer to Hex Converter
Type a positive or negative whole number into the Signed Decimal Input field and the Signed Integer to Hex Converter encodes it as two's complement hex at your chosen bit width. Click Convert and the result appears in Hex Output — this is the same math behind converting a negative decimal number to hex, so it works for that too. The fastest way to get an 8-digit hex-with-alpha code is to enter a color and percentage into the hex color opacity calculator.
Understanding Signed Integer to Hex Calculator: Number Systems, Bit Lengths, and Two’s Complement
What Makes a Number Signed? (Hexadecimal, Signed Numbers)
- Signed Integer:
- A signed integer is a data type in computer science that can represent both positive and negative whole numerals using a predefined bit length. These numerals are critical for arithmetic and engineering tasks because they allow for values both above and below zero.
Unlike unsigned types, which can only hold zero or positive values, signed types rely on the leftmost bit (often called the "sign bit") to mark negatives in digital representations—and this method powers accurate overflow handling within numbering systems. For example, an 8-bit type can hold values from -128 to +127, while an unsigned 8-bit number spans 0 to 255. Paste EBCDIC hex bytes into the ebcdic to text converter and the Text Output box shows the decoded characters instantly.
Role of Bit Lengths and Binary Representation (Bit Length, Binary Numbers, Signed 16-Bits Integer)
Your choice of bit length—such as 8-bit, 16-bit, or 32-bit—determines not only the storage required for the number but also the minimum and maximum base-10 amounts a type can represent. The signed 8-bits integer (int8 or SINT8) and signed 16-bits integer (int16 or SINT16) are just a few popular sizes used in embedded systems and firmware.
- 8-bit: -128 to 127 (signed) or 0 to 255 (unsigned)
- 16-bit: -32,768 to 32,767 (signed) or 0 to 65,535 (unsigned)
- 32-bit: -2,147,483,648 to 2,147,483,647 (signed) or 0 to 4,294,967,295 (unsigned)
In all cases, these types can be rapidly transformed into hex using a base-2 system, making the converter a must-have for developers and engineers.

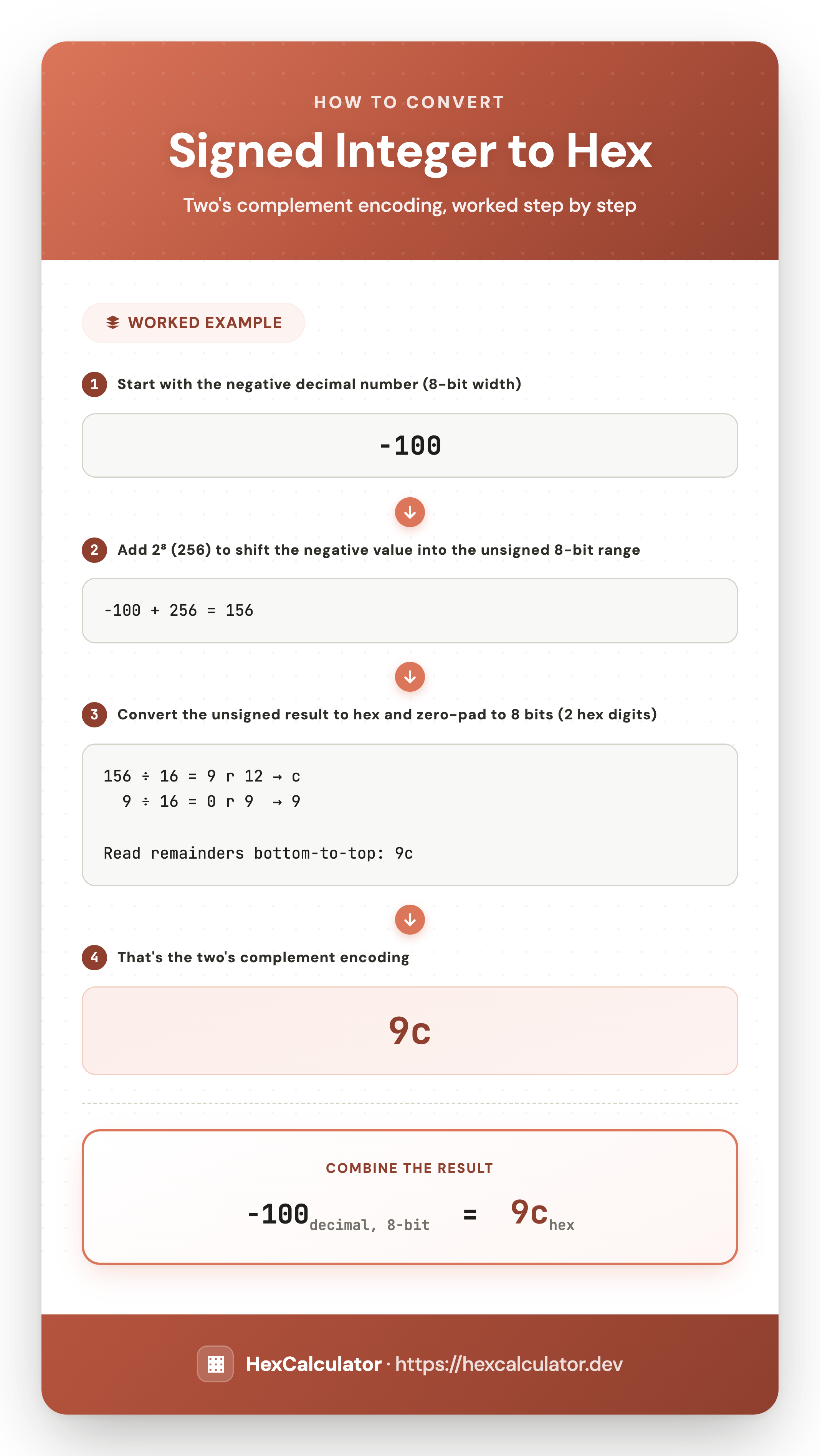

How Two’s Complement Enables Negative Values (Two’s Complement, Conversion Logic, Negative Values)
The cornerstone of signed to hex conversion is two’s complement: a powerful method where negative values are expressed in digital form, seamlessly allowing arithmetic and overflow rules to work with positive and negative integers. The process is:
- Start with the positive digital value.
- Invert every bit (turn 0’s to 1’s and 1’s to 0’s).
- Add 1 to the result.
This strategy allows any negative whole number to be stored and manipulated in hexadecimal or digital formats as if it were just a very large positive value—vital for low-level programming, hex two’s complement calculator operations, and arithmetic logic in digital electronics.
Conversion Sequence: From Decimal to Hexadecimal (Decimal to Hex, Binary to Hex, Hex Output)
The core logic for a signed integer to hex calculator is:
- Step 1 – enter the signed integer: Convert the decimal number to digital form.
- For positive values: straightforward to base-2 translation.
- For negative: first apply two’s complement to get signed digital output.
- Step 2 – choose bit length: Split the bit representation into 4-part groups (nibbles).
- Step 3: Change each 4-bit group to a hex digit.
The formulas:
- For positive n: $$\text{hex} = \text{toHex}(n)$$
- For negative n (two’s complement): $$\text{hex} = \text{toHex}(2^{\text{bits}} + n)$$ (where bits is 8/16/32/etc. and n is negative)
These steps guarantee absolutely correct results in all common scenarios, used by every robust online conversion tool.
Interpreting Hex Output (Hexadecimal, Hex to Decimal Calculator, Hex to Signed Integer Converter)
When you input a value into the signed integer to hex calculator, the resulting hexadecimal is the exact data the computer or microcontroller would store. With hexadecimal is little-endian frequently used in microcontrollers, you may need to reverse byte order for specific applications (consult your embedded systems documentation).
Tip: If you use a hex to signed integer converter or a hex to decimal calculator, these tools reverse the process, transforming hexadecimal back to the original value depending on the bit-size and whether two’s complement encoding was used.
Hexadecimal Value Conversion in Practice: Step-by-Step Guide
Inputting Your Signed Integer Value (Input Format, Signed Integer)
To use the signed integer to hex converter online, just enter your base-10 amount—for example, 12345 or -5432. Ensure your input format matches expectations: numerals only, no fractional part, and typically no delimiters or formatting extras. If you encounter an error, check for non-numeric input or values beyond the allowed size range; overflow will result in undefined behavior or error messages in some converters. The decimal to octal converter divides whatever you enter in the Decimal Input field down into base-8, showing the result in Octal Output.
Selecting Bit Length for Conversion (Bit Length, 16-Bit)
Most tools support several bit length choices:
8, 16, 32, and even 64 bits. Your choice changes the range of allowable values you can enter—and how they're represented after applying two’s complement logic. For example, if you want to store a number in a 16-bit hexadecimal register, use the 16-bit option for both correctness and interoperability in embedded or network contexts. Remember:
- 16-bit hexadecimal is common in firwmare and low-level network protocols and ip data representation
- Check for issues if the amount exceeds the chosen width’s range
Reviewing the Hexadecimal Result (Output, Hexadecimal String)
Once you process the conversion, your hex output will appear as a standardized char array, such as 0x3039. This is the digital literal's hexadecimal mapping, ready for use in c code, variable assignments, or direct memory transfer. Note that hex may appear in uppercase or lowercase—both formats are valid, but always match the expectations for your particular programming environment. For little-endian or hexadecimal is little-endian applications (such as certain ARM microcontrollers), endian ordering can be critical.
Example 1: Positive Integer to Hexadecimal (Decimal to Hex, 16-Bit)
- Identify the number and bit size: Amount = 12345; length = 16
- Convert to base-2: 1234510 = 0011 0000 0011 10012
- Group into hex digits: 0011 0000 0011 1001 → 0x3039
- Result: 0x3039
| Decimal Value | Bit Length | Binary | Hexadecimal |
|---|---|---|---|
| 12345 | 16 | 0011 0000 0011 1001 | 0x3039 |
Example 2: Negative Integer to Hexadecimal (Negative Decimal, Two’s Complement)
- Number: -5432, size = 16
- Apply two’s complement:
- Base-2 of 5432: 0001 0101 0010 1000
- Invert all bits: 1110 1010 1101 0111
- Add 1: 1110 1010 1101 0111 + 1 = 1110 1010 1101 1000
- Hexadecimal: 1110 1010 1101 1000 → 0xEAD8
| Decimal Value | Bit Length | Binary (Two’s Complement) | Hexadecimal |
|---|---|---|---|
| -5432 | 16 | 1110 1010 1101 1000 | 0xEAD8 |
Example 3: Custom Bit Length—Large 32-bit Integer (Converter, 32-Bit, Bitwise)
- Input for large size (32-bit): -1, size = 32
- Apply two’s complement:
- Base-2 of 1: 0000 0000 0000 0000 0000 0000 0000 0001
- Invert: 1111 1111 1111 1111 1111 1111 1111 1110
- Add 1: 1111 1111 1111 1111 1111 1111 1111 1111
- Hexadecimal: 1111 1111 1111 1111 1111 1111 1111 1111 → 0xFFFFFFFF
| Decimal Value | Bit Length | Binary (Two’s Complement) | Hexadecimal |
|---|---|---|---|
| -1 | 32 | 1111 ... 1111 (32x) | 0xFFFFFFFF |
Real-World Applications and Hexadecimal Conversion Questions
Applications in Embedded Systems and Firmware (Embedded Systems, Firmware)
The signed integer to hex calculator is essential in embedded systems and firmware development, where bit operations and measurements packing impact performance, stability, and hardware resource usage. Microcontrollers often store or transmit values in hex for efficiency.
- Storing sensor readings in hex for data representation efficiency
- Sending ASCII or char codes via network protocols and ip data representation (where big/little-endian matters)
- Programming lookup tables and device registers
Why Hex Representation Is Preferred in Low-Level Programming (Debugging and Low-Level Programming, Engineering)
Hexadecimal output is easier to interpret and less error-prone than base-10 when debugging CRCs, digital content, programming microcontrollers, or reviewing memory maps. Since each hex digit precisely maps to 4 bits, it’s also more succinct—saving time and reducing mistakes on paper, in code, or during live hardware debugging.
FAQ: Range of Signed Integers at Each Bit Length
- Range for signed 8-bits integer:
- -128 to 127
- Range for signed 16-bits integer:
- -32,768 to 32,767
- Range for signed 32-bits integer:
- -2,147,483,648 to 2,147,483,647
- Range for signed 64-bits integer:
- -9,223,372,036,854,775,808 to 9,223,372,036,854,775,807
FAQ: Handling Negative Values in Hex (Hex Two’s Complement Calculator, Overflow)
Negative values in hexadecimal use two’s complement conversion—so, for example, -1 with a 16-bit length becomes 0xFFFF. Always match your bit length to the storage variable type to avoid issues or misinterpreted amounts.
FAQ: Validating Hexadecimal Output (Hex to Decimal Calculator, Error, Output)
If your hex output seems wrong, double-check:
- Base-10 input within the allowed range for the bit length
- Endian order (little/big endian may swap bytes)
- Presence of overflow or underflow for out-of-range values
- Correct two’s complement application for negatives
For further assistance, consult your format help or official documentation for digital/hex transformation.
FAQ: Can You Convert Floating-Point Values? (Float, IEEE754, Binary)
Standard integer to hex calculators do not handle float (single accuracy) or double (float64) amounts. For floating points (IEEE754), use a specialized online hex to binary or float-to-hex tool. Attempting to input a floating-point value may result in an error message or undefined output.
FAQ: Two’s Complement in Real-World Data (Mathematical Integers, Overflow, Variables)
Two’s complement is the standard for representing signed values across most computer architectures and programming languages. It simplifies arithmetic operations, enables logic processing, and ensures robust system behavior for mathematical calculations in variables.
| Bit Length | Signed Range | Unsigned Range |
|---|---|---|
| 8 | -128 to 127 | 0 to 255 |
| 16 | -32,768 to 32,767 | 0 to 65,535 |
| 32 | -2,147,483,648 to 2,147,483,647 | 0 to 4,294,967,295 |
| 64 | -9.22e+18 to 9.22e+18 | 0 to 1.84e+19 |
In summary: A powerful signed integer to hex calculator is your bridge between number systems, critical for reliable data representation in embedded, networked, and low-level computing applications. When you use it for storage, transmission, or debugging, matching bit length and endian conventions is non-negotiable. Use the step-by-step examples above and the comprehensive reference tables to ensure every transformation is precise and ready for the demands of modern engineering and computer science. Related: try our hex to binary converter or learn about bit length in binary numbers for additional insight into storage requirements and encoding. Perform CRC checks when dealing with protocol validation, and see how char or ASCII codes are managed in low-level data processing.
