Hex to HSV Converter

The Hex to HSV Converter reads your Hex Color value and works out its hue, saturation, and value (brightness). Click Convert and the breakdown appears in HSV Output. The hex to rgb converter breaks a hex color code down into its red, green, and blue components with a single click.

What Is the Hex to HSV Format and Why Does It Matter?

How Hex Codes Encode RGB Color Data

A hex color code is a compact, six-digit combination of numbers and letters that encodes the red, green, and blue channels of any displayable color. Written as #RRGGBB, each pair of characters is a hexadecimal number ranging from 00 to FF, which maps to a decimal value from 0 to 255 — one byte per channel. The complete string is therefore a three-byte value representing the full red green blue intensity for a single pixel. For example, #FF5733 is a shade of orange because its red channel is at maximum (FF = 255), green is moderate (57 = 87), and blue is low (33 = 51). Use the text to ebcdic hex converter when preparing a file or job that expects EBCDIC bytes instead of ASCII text.

The format also supports a shorthand hex triplet (#RGB, where each digit is doubled) and an eight-digit variant (#RRGGBBAA) that adds an alpha transparency channel. Because HTML, CSS, and SVG all accept the six-digit form natively, hex has become the dominant web color notation across computing applications. It is compact, unambiguous, and universally supported — but it reveals nothing about a color's perceptual qualities at a glance.

Common Use Cases for Hex in Web Design and Development

Hex codes appear everywhere in web design and web development: stylesheet color properties, design-token files, brand guideline documents, and image-editing software export dialogs. Designers copy a 6 digits hex code from a color picker or brand style guide, paste it into a stylesheet, and the browser renders it instantly. The widespread adoption of hex across web applications and creative tools makes it the natural starting point for any color conversion workflow — including the conversion to HSV for more intuitive color adjustments.

Understanding the HSV Color Model — an Online Hex to HSV Converter Perspective

Breaking Down Hue, Saturation, and Value

HSV stands for hue saturation value, three independent axes that together describe every color in the visible spectrum. The color model was developed in the 1970s by computer graphics researchers to align the mathematical representation of color more closely with human vision and color perception.

  • Hue (H, 0°–360°): The pure color angle on the color wheel. Red sits at 0°, green at 120°, and blue at 240°. Every color type — from yellow to cyan to purple — occupies a distinct arc around this color circle.
  • Saturation (S, 0–100%): The intensity or purity of the color. A saturation of 100% produces the most vivid version of a hue; 0% collapses it to a neutral color on the central axis — gray, black, or white depending on the value.
  • Value (V, 0–100%): The brightness of the color. At 0%, the result is always black; at 100%, the hue shines at full brightness. The value channel is what distinguishes a rich navy from a pale sky blue, even when both share the same hue angle.

In the HSV geometry, colors of each hue are arranged in a radial slice around a central axis of neutral colors ranging from black at the bottom to white at the top. This cone-like structure is why HSV is sometimes called HSB (hue saturation brightness, or HSB in Adobe software) — the terms are interchangeable in most professional design applications.

Why HSV Aligns with Natural Human Color Perception

When you mix paint in traditional art, you think about what color you want, how vibrant it should be, and how light or dark it appears. That three-part mental model maps almost perfectly onto hue, saturation, and value. This alignment with the way humans see colors makes HSV the preferred color space for tasks like color harmony generation, color grading in photography post-processing, and selecting complementary tones in graphic design. Artists can nudge the hue angle to find analogous colors, reduce saturation to create softer tones, or lower the value for shadows — all without touching the underlying RGB color model numbers directly.

HSV vs Hexadecimal — Choosing the Right Color Model for Your Workflow

The hexadecimal color model and the HSV model are alternative representations of the same underlying RGB data — they encode identical color information in different forms. Hex is machine-readable and browser-native; HSV is human-intuitive and designer-friendly. The key differences:

  • Hex expresses color levels as raw channel intensities; HSV expresses them as perceptual attributes.
  • Hex requires no mental calculation to paste into CSS; HSV requires no mental translation to make a creative decision.
  • HSV differs from HSL (hue saturation lightness) in how the lightness axis is computed — HSL's lightness is the average of Cmax and Cmin, while HSV's value equals Cmax directly, making HSV slightly simpler to compute and more predictable for artists.

Understanding this distinction guides you toward the right color format for each task: hex for code, HSV for creative decisions, CMYK for print design, and LAB for perceptual color matching across devices.

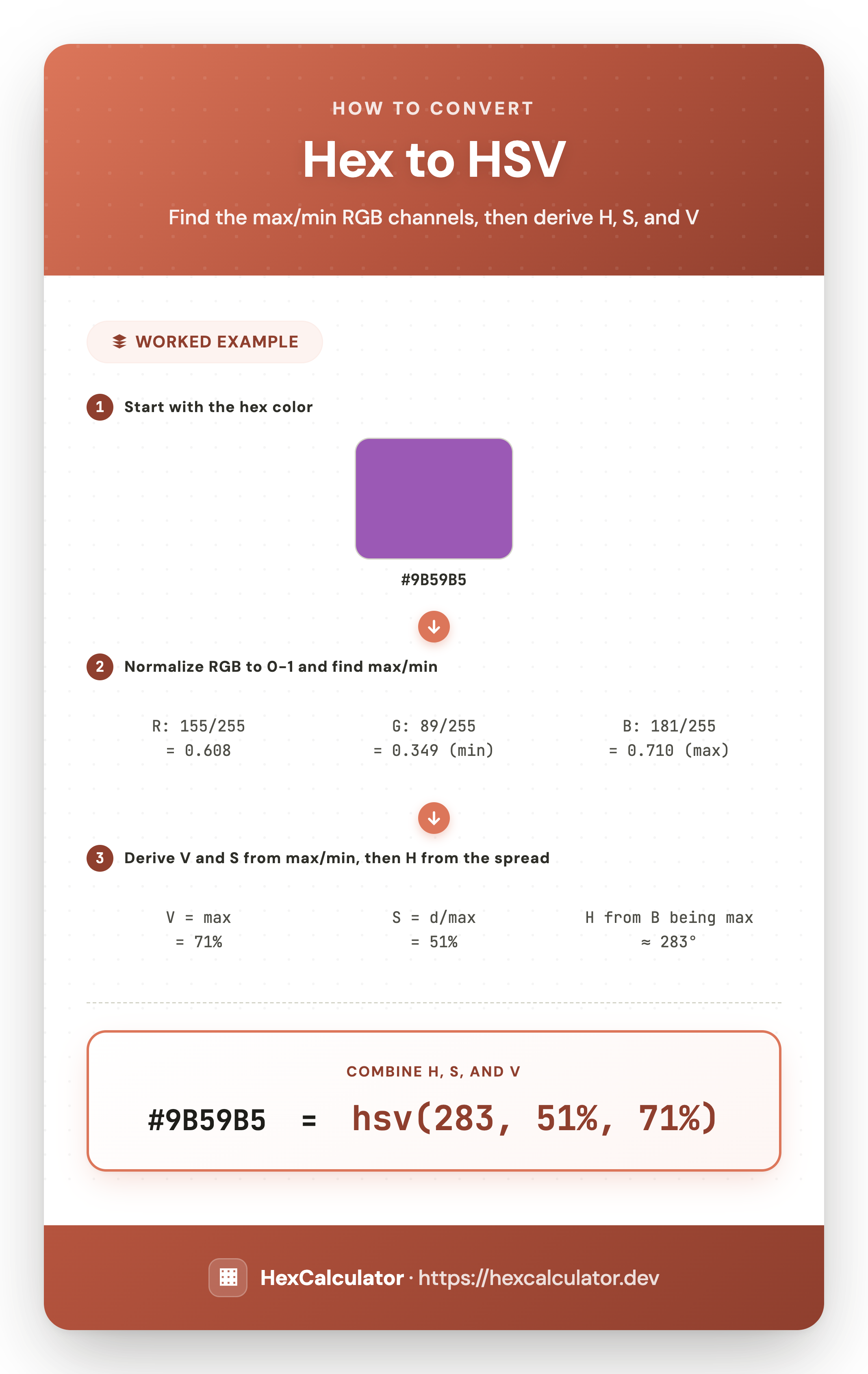

How the Hex-to-HSV Color Converter Algorithm Works

Step 1 — Parsing the Hex Code into RGB Components

The conversion begins by breaking the hexadecimal string into its three channel pairs. Strip the leading # symbol, then split the remaining six characters into three two-character groups: RR, GG, and BB. Convert each pair from hexadecimal notation (base-16) to decimal notation (base-10) to get channel values in the 0..255 range. Finally, normalize each value to the 0..1 range by dividing by 255 — this produces the primed values used in the conversion formula.

In formula notation, with R, G, B as the original color levels on the 0 to 255 scale:

$$R' = \frac{R}{255}, \quad G' = \frac{G}{255}, \quad B' = \frac{B}{255}$$

Step 2 — Applying the RGB to HSV Conversion Formula

Once you have the normalized RGB values, calculate three intermediate values — Cmax, Cmin, and delta — that drive the hue calculation, saturation calculation, and value calculation:

$$C_{\max} = \max(R', G', B'), \quad C_{\min} = \min(R', G', B'), \quad \Delta = C_{\max} - C_{\min}$$

The conversion formula for each HSV component is then:

Hue calculation — the hue angle in degrees depends on which channel is dominant:

$$H = \begin{cases} 0° & \text{if } \Delta = 0 \\ 60° \times \left(\frac{G' - B'}{\Delta} \bmod 6\right) & \text{if } C_{\max} = R' \\ 60° \times \left(\frac{B' - R'}{\Delta} + 2\right) & \text{if } C_{\max} = G' \\ 60° \times \left(\frac{R' - G'}{\Delta} + 4\right) & \text{if } C_{\max} = B' \end{cases}$$

Saturation calculation:

$$S = \begin{cases} 0 & \text{if } C_{\max} = 0 \\ \frac{\Delta}{C_{\max}} & \text{otherwise} \end{cases}$$

Value calculation:

$$V = C_{\max}$$

Multiply S and V by 100 to express them as percentages. The result is a complete HSV color code — three numbers that describe your color in artist-friendly terms.

RGB to HSV Color Reference Table

The following color table lists the standard web color names alongside their hex R G B triplets, hex codes, and corresponding H S V output values. Use it to verify your converter results or as a quick reference for common color codes.

Color Name(R, G, B)HexColor(H, S, V)
Black(0, 0, 0)#000000 (0°, 0%, 0%)
White(255, 255, 255)#FFFFFF (0°, 0%, 100%)
Red(255, 0, 0)#FF0000 (0°, 100%, 100%)
Lime(0, 255, 0)#00FF00 (120°, 100%, 100%)
Blue(0, 0, 255)#0000FF (240°, 100%, 100%)
Yellow(255, 255, 0)#FFFF00 (60°, 100%, 100%)
Cyan(0, 255, 255)#00FFFF (180°, 100%, 100%)
Magenta(255, 0, 255)#FF00FF (300°, 100%, 100%)
Silver(191, 191, 191)#BFBFBF (0°, 0%, 75%)
Gray(128, 128, 128)#808080 (0°, 0%, 50%)
Maroon(128, 0, 0)#800000 (0°, 100%, 50%)
Olive(128, 128, 0)#808000 (60°, 100%, 50%)
Green(0, 128, 0)#008000 (120°, 100%, 50%)
Purple(128, 0, 128)#800080 (300°, 100%, 50%)
Teal(0, 128, 128)#008080 (180°, 100%, 50%)
Navy(0, 0, 128)#000080 (240°, 100%, 50%)

Why Use an RGB to HSV Online Color Converter?

Key Benefits for Digital Artists and UI/UX Designers

Performing rgb to hsv conversion manually requires multiple steps, conditional branching logic for the hue angle, and careful handling of floating-point arithmetic. A single rounding slip in the divided by 255 normalization step can introduce errors that propagate through the entire result. An online tool eliminates those manual errors, delivers accurate HSV values in results in seconds, and requires no program setup — it runs in any web browser on Linux, Mac OS, Android, or iOS without installation.

The speed and accuracy advantages make this color tool indispensable for:

  • Digital art creation — quickly translate hex swatches from reference images into HSV values for color mixing and tonal consistency across digital designs.
  • Photography post-processing — export hex codes from image editors, then use the HSV output to guide hue-shift and saturation adjustments in photo grading software.
  • UI/UX color systems — brand identity development teams can convert every brand hex code to HSV, enabling systematic saturation and value adjustments that maintain visual harmony across a full design system.
  • Perceptual color matching — comparing two colors by their HSV components reveals relationships (same hue, different value) that hex strings completely obscure.
  • RGB workflow compatibility — the tool bridges hex-native web tools with HSV-native creative software, supporting a smooth cross-format color workflow.

The tool is also free to use for anyone — designers and developers alike — with no subscription or account required. Simply paste hex code or type your input hex code into the empty input field and click the convert button to receive your HSV output instantly. Note that an empty input field will not trigger a conversion — the validator requires a valid hex string before processing.

Integrating HSV Output Across Design Software

Once you have your precise HSV values, you can feed them directly into the color picker panels of major creative applications. Adobe Photoshop and Illustrator both expose an HSB (HSV) input mode in their color pickers, making software integration seamless. Figma's color panel also accepts hue, saturation, and brightness inputs that correspond directly to your converter output. This software compatibility means your color workflow can span from browser devtools to vector illustration to animation software without any manual recalculation.

For teams managing large color systems, the typical cross-format pipeline looks like this: export hex from browser devtools → convert hex to hsv using this tool → enter HSV into Photoshop or GIMP for tonal adjustments → export the modified color back through an hsv to hex converter for CSS implementation. This color workflow integration prevents color drift between design and development environments and supports color accuracy across all deliverables.

Common Color Conversion Examples Using Hex to HSV

Example 1 — Converting a Brand Primary Color (#E63946)

This vivid red is a common choice in brand identity development and visual communication materials. Here is the full converting hex to hsv walkthrough:

  1. Parse the hex code: #E63946 → R = E6 = 230, G = 39 = 57, B = 46 = 70
  2. Normalize to 0..1 range: \(R' = \frac{230}{255} \approx 0.902\), \(G' = \frac{57}{255} \approx 0.224\), \(B' = \frac{70}{255} \approx 0.275\)
  3. Calculate Cmax, Cmin, Δ: \(C_{\max} = 0.902\), \(C_{\min} = 0.224\), \(\Delta = 0.678\)
  4. Hue calculation (Cmax = R′): $$H = 60° \times \left(\frac{0.224 - 0.275}{0.678} \bmod 6\right) \approx 60° \times 5.925 \approx 355.5° \approx 356°$$
  5. Saturation calculation: $$S = \frac{0.678}{0.902} \approx 0.752 \approx 75\%$$
  6. Value calculation: $$V = C_{\max} = 0.902 \approx 90\%$$
  7. Result: HSV(356°, 75%, 90%)

What does this tell a designer? The high value (90%) confirms the color will reproduce brightly on screen; the saturation of 75% places it firmly in the vibrant zone without reaching full intensity. A designer can explore analogous brand colors by shifting the hue angle ±20° while keeping S and V fixed — a textbook example of color harmony generation enabled by HSV.

Example 2 — Converting a Neutral Grayscale Hex Code (#808080)

Medium gray is the clearest illustration of the grayscale edge case in rgb to hsv conversion. When all three RGB channels are equal, the color contains no hue information at all.

  1. Parse: #808080 → R = 128, G = 128, B = 128
  2. Normalize: \(R' = G' = B' = \frac{128}{255} \approx 0.502\)
  3. Cmax = Cmin = 0.502, Δ = 0
  4. Hue: Δ = 0, so H = 0°
  5. Saturation: Cmax = 0.502 ≠ 0, but Δ = 0, so $$S = \frac{0}{0.502} = 0\%$$
  6. Value: $$V = 0.502 \approx 50\%$$
  7. Result: HSV(0°, 0%, 50%)

The saturation collapses to exactly 0% for all grayscale hex codes because there is no dominant channel — no hue angle can be defined. The only meaningful information is carried by V: 50% places this gray exactly midway on the black to white axis. This behaviour is consistent across all neutral colors, from pure black (#000000 → HSV 0°, 0%, 0%) to pure white (#FFFFFF → HSV 0°, 0%, 100%).

Example 3 — Converting a Pastel Hex for UI Color Palettes (#AEC6CF)

Pastel tones are essential in ui/ux design for backgrounds, hover states, and soft color palette systems. This pastel blue demonstrates a characteristic HSV pattern.

  1. Parse: #AEC6CF → R = AE = 174, G = C6 = 198, B = CF = 207
  2. Normalize: \(R' \approx 0.682\), \(G' \approx 0.776\), \(B' \approx 0.812\)
  3. Cmax = B′ ≈ 0.812, Cmin = R′ ≈ 0.682, Δ ≈ 0.130
  4. Hue (Cmax = B′): $$H = 60° \times \left(\frac{0.682 - 0.776}{0.130} + 4\right) = 60° \times 3.277 \approx 196.6° \approx 197°$$
  5. Saturation: $$S = \frac{0.130}{0.812} \approx 0.160 \approx 16\%$$
  6. Value: $$V \approx 0.812 \approx 81\%$$
  7. Result: HSV(197°, 16%, 81%)

The low saturation (16%) combined with a high value (81%) is the defining signature of pastel colors in HSV space. A designer building a soft color palette for a wellness app can systematically generate companion pastels by rotating the hue across the color arranged circle at fixed S = 16%, V = 81% — achieving perfect tonal consistency. This is precisely why HSV is the preferred color description format for systematic color design work.

Advanced Color Theory Applications and HSV Color Format Uses

Beyond single-color conversion, HSV unlocks advanced color theory techniques that are difficult to execute using hex or RGB directly. Because the hue axis maps directly onto the traditional color theory color wheel, complementary pairs are simply hues separated by 180°, triadic schemes use 120° spacing, and analogous palettes cluster within a 30° arc. The color theory applications are immediate and visual once you have HSV values in hand.

The color psychology implications of saturation and value are equally actionable. High-value, high-saturation colors signal energy and urgency (ideal for call-to-action elements); low-saturation, high-value colors communicate calm and sophistication (ideal for backgrounds and secondary text). Understanding your color's HSV components allows you to make intentional visual design choices grounded in how color perception actually works for viewers.

For color accessibility, the value channel is your most direct ally. WCAG contrast ratios depend partly on the relative luminance of foreground and background colors, which correlates strongly — though not perfectly — with HSV value. Pairing a high-value color against a low-value color gives you a starting point for contrast evaluation; then use a dedicated color contrast checker to confirm WCAG compliance. The hsl color model integration approach offers similar benefits via its lightness axis, but HSV's value channel is more directly actionable for artists accustomed to thinking about brightness in terms of paint color mixing.

For print production support, remember that HSV is fundamentally an RGB-space model designed for screen display. For printing, your HSV values must ultimately be routed through a hex to cmyk converter to reach CMYK ink percentages. The HSV representation remains useful even for print workflows as an intermediate creative step — you can make perceptual adjustments in HSV, then export the final hex for CMYK conversion.

Related Color Tools to Extend Your Color Conversion Workflow

A complete digital color workflow rarely ends at a single conversion. The tools below complement your hex-to-HSV results and support the full range of color formats conversion tasks that designers and developers encounter in creative projects.

Color format converters:

  • HSV to Hex Converter — reverse the process; convert hsv back to hex for CSS implementation after making HSV adjustments
  • Hex to RGB Converter — decompose a hex code into its individual red, green, and blue channel values
  • RGB to Hex Converter — encode RGB channel values back into a web-ready hex string
  • HSV to RGB Converter — translate HSV color output directly into RGB triplets for use in web applications
  • Hex to CMYK Converter — convert screen colors to print-ready ink percentages for print design and production workflows; essential for any cmyk color project
  • Hex to HSL Converter — convert to HSL for CSS-native hsl color functions; supports hsl to rgb and rgb to hsl round-trips
  • RGB to CMYK Converter — direct rgb to cmyk path for print workflows; complement with cmyk to rgb for reverse conversions
  • Hex to Tailwind Converter — find the nearest tailwind color class for any hex code; pair with the Tailwind to Hex Converter for bidirectional mapping
  • Hex to Pantone Converter — match screen colors to pantone color swatches for brand consistency; use the Pantone to Hex Converter to go the other direction
  • Hex to RAL Converter — map digital colors to ral color standards for industrial and architectural applications; reverse with the RAL to Hex Converter
  • Hex to Benjamin Moore Converter — find matching paint swatches; companion Benjamin Moore to Hex Converter available
  • RGB to LAB Converter — convert to LAB color space for device-independent perceptual color matching

Color utility tools:

  • Color Palette Builder — build harmonious color palette sets from a base color
  • Gradient Generator — create smooth gradient transitions between two or more colors
  • Color Mixer — blend colors together to explore color mixing results
  • Color Name Finder — identify the closest standard color name for any hex code
  • Color Contrast Checker — verify color contrast ratios for accessibility compliance
  • Compare Colors — perform side-by-side color comparison to evaluate visual differences, including hex color difference analysis
  • Random Color Generator — generate a random color for creative exploration and visualization
  • Image Color Picker — extract image color values directly from any uploaded photo for photography or image conversion workflows
  • Color Palette from Image — generate a full color palette from an uploaded image; ideal for digital projects and moodboards
  • Hex Color Opacity Calculator — calculate hex color opacity alpha values for transparent overlays
  • Hex Color Tint Calculator — generate lighter tints; useful for hex color tint scale generation in design systems
  • Hex Color Difference Calculator — measure perceptual distance between two colors for color coding and QA

Frequently Asked Questions About Converting Hex to HSV

What does each HSV component represent in practical design terms?

Hue identifies the color type — it is the angle on the color wheel that distinguishes red from green from blue. Saturation controls color richness: a fully saturated color is pure and vivid, while zero saturation produces a gray. Value governs brightness: 100% value at any hue produces the brightest possible version of that color, while 0% always yields black regardless of hue or saturation. Together, these hsv components give you a complete color representation that mirrors how artists and humans naturally think about color making attributes.

How do I use HSV values in web development?

CSS and HTML do not natively accept HSV as a color format. The browser-native alternatives are hex, RGB, and HSL (via the hsl() function). After making creative decisions in HSV space, use this tool in reverse — an hsv to hex converter or hsv to rgb converter — to produce the hex or RGB string you need for your stylesheet. Some JavaScript libraries and the Python colorsys library support HSV natively for programmatic color format transform operations in web development.

Can HSV values help with color accessibility?

Yes, with important caveats. The value channel in HSV gives you an approximate sense of brightness — colors with very different value readings will typically have sufficient color contrast for readability. However, WCAG 2.1 accessibility standards use relative luminance (derived from linear RGB, not HSV value) as the formal measure. Use HSV to make initial tone decisions, then validate with a dedicated color contrast checker for accurate color accessibility compliance. The color comparison between foreground and background value readings is a useful but not sufficient accessibility check.

What happens when converting grayscale hex codes to HSV?

When all three channel values in a hex code are equal — such as #808080 (gray), #FFFFFF (white), or #000000 (black) — Cmax equals Cmin, making delta equal to zero. As a result, the hue calculation is undefined, and H defaults to 0°. The saturation calculation also yields 0% because there is no channel dominance. Only the value calculation carries meaningful information, reflecting the brightness level from 0% (black) to 100% (white). This is why all neutral colors produce an HSV code of (0°, 0%, V%) — the precise HSV values are mathematically correct but the hue and saturation components are essentially placeholders.

How accurate are the hex-to-HSV conversions this tool produces?

The color conversion algorithm is deterministic and mathematically exact within the precision of floating-point arithmetic. For most practical purposes, accurate color conversions are guaranteed — the tool produces the same result as manual calculation to several decimal places. Floating-point rounding may occasionally cause a ±1 unit difference in the final displayed percentage, but this has no perceptible effect on digital color output. The conversion process does not approximate or guess — it is a direct algebraic transformation of your hex values into hsv values.

Can I use HSV values for print design projects?

HSV is fundamentally a screen-oriented color space built on the RGB color model, so it does not translate directly to print ink systems. For print design and printing production, you need CMYK values. Use the hex to cmyk converter to convert your final color to CMYK percentages. HSV remains useful as an intermediate creative format even in print workflows — make perceptual adjustments in HSV, confirm the final hex, then convert that hex to CMYK for your prepress team. This supports color format flexibility across both screen and print production support scenarios.

Do HSV adjustments affect image quality?

No. Converting between hex, RGB, and HSV is a mathematically lossless color format transform — no color data is discarded in either direction. The numbers change representation, but the underlying color information is fully preserved. Image quality is only affected if you round aggressively during conversion or if you make destructive edits (e.g., clipping a value above 100%) after conversion. The tool itself introduces no quality degradation. Converting multiple hex codes through this tool and back via hsv back to hex will reproduce the original hex codes within normal floating-point precision limits.

How do HSV values relate to traditional color theory?

The hue axis in HSV maps directly onto the traditional color theory color wheel, making color theory applications immediate and intuitive. Complementary colors sit at hues 180° apart; triadic schemes use three hues at 120° intervals; split-complementary schemes use specific offset angles. The saturation axis mirrors the concept of mixing a pure pigment with white (reducing saturation) or increasing its intensity. The value axis mirrors adding black (reducing value) to create shades. This makes HSV the most accessible color model for designers trained in art, color psychology, or visual communication, and explains why it has remained a cornerstone of artistic workflow integration since the 1970s.

Can I batch convert multiple hex codes to HSV?

Most online converter tools, including this one, process one hex color code at a time for simplicity and speed. If you need to batch convert a large set of multiple hex codes — for example, an entire design system token file — consider scripting the conversion using Python's colorsys library, which provides a direct rgb_to_hsv() function. For occasional design work, the single-conversion workflow is fast and easy enough that processing individual tokens takes only seconds per color.

What software applications work best with HSV color values?

Adobe Photoshop and Illustrator both expose HSB (identical to HSV) input fields in their color picker dialogs, making professional design applications the primary destination for your converter output. GIMP includes a dedicated HSV input mode. Figma's color panel supports hue, saturation, and brightness (HSB/HSV) entry. Affinity Designer and Affinity Photo also include HSL and HSV modes. For animations and motion graphics, After Effects exposes hue and saturation controls that operate on similar perceptual principles. Across all of these tools, software compatibility with HSV is strong, making this artist-friendly format the right choice for creative workflows spanning visualization, illustration, and digital production.
