Hex to Signed Integer Converter

The Hex to Signed Integer Converter interprets whatever you paste into Hex Input as a two's complement signed value at the bit width you choose — 8, 16, 32, or 64-bit. Click Convert and the signed number, negative or positive, shows up in Signed Decimal Output. Before sending artwork to a printer, run your hex color through the hex to cmyk converter to see its CMYK breakdown.

Understanding Hex to Signed Integer: From Hexadecimal Bytes to Binary Values

What Makes an Integer 'Signed'?

Signed integer
An integer value capable of representing both positive and negative numbers by reserving the highest bit as a sign bit. For example, an 8-bit signed integer ranges from -128 to 127.
Unsigned integer
Interprets all bits as magnitude, so an 8-bit unsigned integer ranges from 0 to 255.

Numbers in binary can be interpreted as signed or unsigned, and that choice changes how you read a hex value's numeric meaning in computer science and programming, which is exactly why this converter asks you to pick a bit width before it decides whether the value is negative. The tailwind to hex converter looks up the exact hex value behind any Tailwind CSS color class, like blue-500.

How Hexadecimal Notation Works

Hexadecimal notation uses the base-16 system, employing digits 0 through 9 and letters A through F. Each hex digit maps directly to a group of 4 binary digits:

  • Hex A = 1010 in binary
  • Hex F = 1111 in binary

When you see a hex number like 0x7F, you're really looking at eight binary digits, which might represent either 127 or -1 depending on the bit width you select.

Inside Two's Complement Binary Representation

The two's complement binary representation is the standard method computers use to encode signed values. The most significant bit, the leftmost one, acts as the sign bit:

  • 0 = positive
  • 1 = negative

To get a negative decimal from hex, you:

  1. Check whether the sign bit is 1 (for an 8-bit value, that means the plain unsigned number is 128 or greater).
  2. Compute the value as number - 2^n, where n is the bit width. For example, hex 0xFF (binary 11111111) at 8 bits: 255 - 256 = -1.

This is how hex is mapped back to its signed integer equivalent across networking, embedded, and general-purpose computing.

Why Bit Width Matters in Conversion

The bit width you choose determines the possible range of both positive and negative results. This converter lets you pick 8-bit, 16-bit, 32-bit, or 64-bit, and the same hex input can produce a completely different signed result depending on which you select:

Bit Width (n)Signed Integer RangeUnsigned Integer Range
8-128 to 1270 to 255
16-32,768 to 32,7670 to 65,535
32-2,147,483,648 to 2,147,483,6470 to 4,294,967,295
64-9,223,372,036,854,775,808 to 9,223,372,036,854,775,8070 to 18,446,744,073,709,551,615

This is why the bit width selector in this hex to signed integer calculator matters so much. These widths are often called sint8, sint16, sint32, and sint64 in C-style code, though the calculator's own dropdown simply labels them 8-bit, 16-bit, 32-bit, and 64-bit.

Real-World Relevance: Embedded and Low-Level Programming

In embedded systems, network protocols, and firmware development, hex conversion is a daily task. Hex numbers may represent sensor readings, device registers, or communication payloads in binary form. Using a hex to signed integer tool is routine in low-level programming, debugging hardware, or analyzing byte streams for their real meaning.

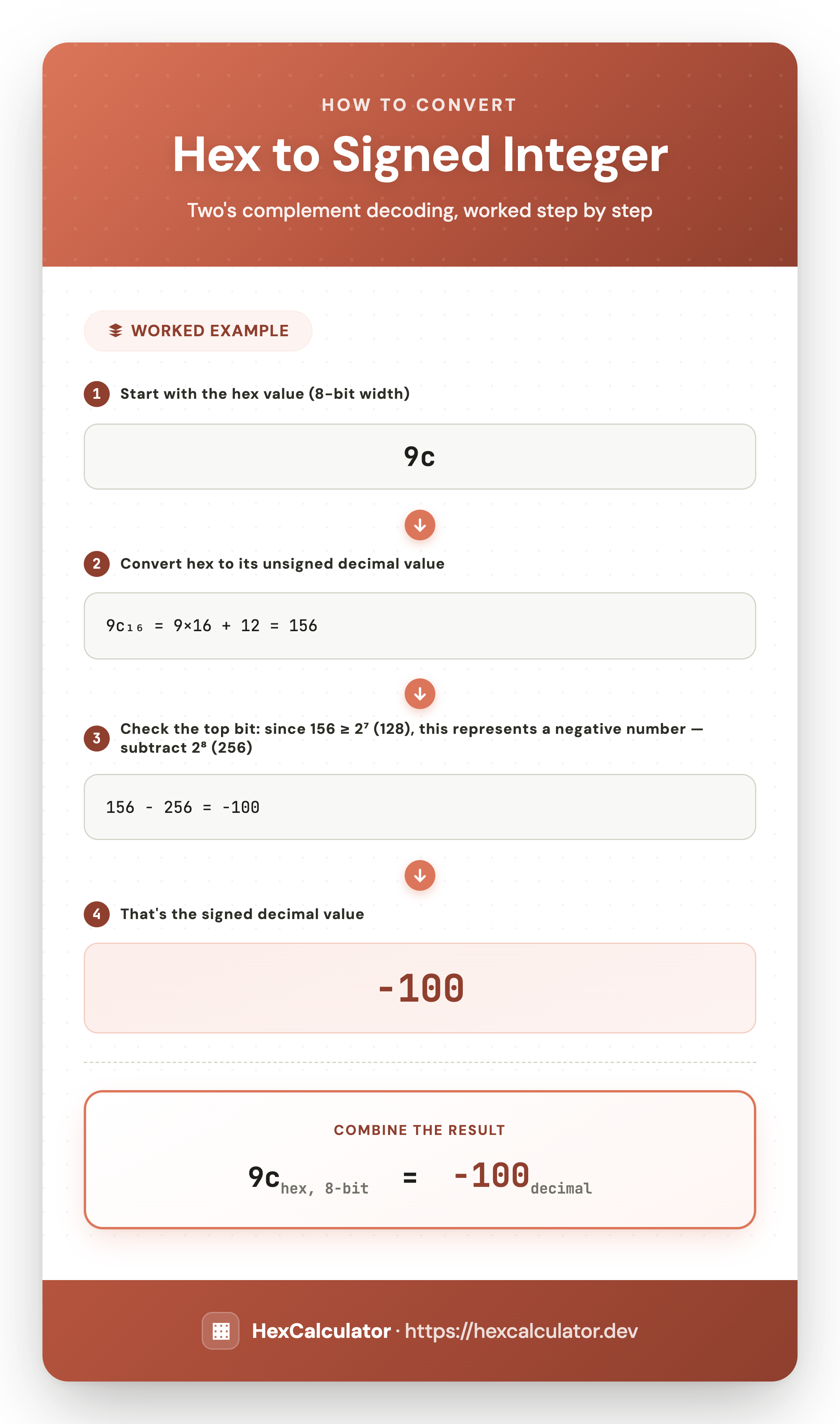

Infographic showing how to convert 8-bit hex 9c to a signed integer: read it as unsigned decimal 156, then subtract 2 to the power of 8 since the top bit is set to get -100
Hex to Signed Integer Converter: 9c = -100

Interpreting Results With a Signed Integer Converter: How to Use the Hex to Signed Integer Calculator

Enter Your Hexadecimal Value

Type or paste your hex value into Hex Input, in formats like 0x7F or plain FF, upper or lower case; the hex to signed integer calculator tolerates case variation either way. Make sure the value fits within your chosen bit width, since conversion tops out at 64 bits. If you're working with a byte-order-swapped value instead, that's outside what this converter interprets; the site's separate Little-Endian Hex to Decimal Converter handles that case. Use the hex to 7 segment converter to check the correct segment pattern before wiring up a seven-segment display in a hardware project.

Select the Bit Width

The bit width you choose changes the interpretation of the same hex digits. Choose between 8-bit, 16-bit, 32-bit, or 64-bit, matching your target format, variable size, or field width. For example, some microcontrollers default to 16-bit registers, while a typical C int is 32-bit.

Click Convert to Get Results

The converter applies two's complement logic and displays the signed integer equivalent for your input immediately, removing guesswork and manual computation. Because conversion happens live as you type, you can also just watch the result update without clicking Convert at all.

How the Calculator Handles Positive and Negative Numbers

The hex to signed integer calculator uses the following logic:

  1. If the input's highest bit (the sign bit) is 0, treat the value as positive. Output equals the hex value's normal decimal number.
  2. If the sign bit is 1, compute:
    $$\text{Signed Value} = \text{Hex Value} - 2^{n}$$
    where n is your selected bit width.

This step-by-step conversion ensures both positive and negative answers are mapped accurately for two's complement encoded binary values.

Interpreting the Signed Integer Output

The output is the signed integer form of your hex input, letting you immediately see whether you're handling a negative decimal or a positive one. In embedded systems and low-level programming, correctly reading a value's sign is what stands between working code and a subtle, hard-to-find bug.

Worked Examples: Hexadecimal to Signed Integer for Common Bit Widths

  1. Example 1: Convert 8000 (hex) at 16-bit
    • Hexadecimal input: 8000
    • Binary: 1000 0000 0000 0000
    • Bit width: 16
    • Sign bit is 1, so compute:
      $$8000_{16} = 32768 \rightarrow 32768 - 65536 = -32768$$
    • Output: -32768
  2. Example 2: Convert 7F (hex) at 8-bit
    • Hexadecimal input: 7F
    • Binary: 0111 1111
    • Bit width: 8
    • Sign bit is 0, so output equals the decimal number:
      $$7F_{16} = 127$$
    • Output: 127
  3. Example 3: Convert FFFF (hex) at 16-bit
    • Hexadecimal input: FFFF
    • Binary: 1111 1111 1111 1111
    • Bit width: 16
    • Sign bit is 1, so compute:
      $$FFFF_{16} = 65535 \rightarrow 65535 - 65536 = -1$$
    • Output: -1

Practical Applications: Networking, Embedded Systems, and Debugging

Hexadecimal is the universal language of network protocols, firmware, and low-level programming. Converting between hexadecimal and signed integer comes up constantly when:

  • Reading device memory dumps and register values
  • Validating communication protocols that use two's complement encoding
  • Debugging embedded systems, microcontrollers, or network equipment

Misreading a negative result as positive, or picking the wrong bit width, can send you chasing a bug that was actually just a sign-interpretation mistake. This calculator exists to remove that ambiguity for programming, engineering, and debugging tasks.

Troubleshooting Common Input Issues

Non-hex characters in the input
Only 0-9 and A-F (case-insensitive) are valid hex digits. Anything else needs to be removed before the value can convert.
Input exceeds the selected bit width
Conversion is limited to 64 bits total, and a hex value has to fit within the number of bits you've selected; an 8-bit width can only represent two hex digits (one byte).
Case sensitivity
Hexadecimal is case-insensitive. Both ff and FF are valid and produce the same result.
Bit width doesn't match your source system
If the sign looks wrong, double-check that the bit width you picked actually matches the field size your hex value came from (a byte, a 16-bit register, a 32-bit int, and so on).

Quick Reference Table: Hex, Bit Widths, and Signed Integer Results

Hex ValueBit WidthBinarySigned Integer EquivalentUnsigned Value
808-bit1000 0000-128128
FF8-bit1111 1111-1255
7F8-bit0111 1111127127
800016-bit1000 0000 0000 0000-3276832768
FFFF16-bit1111 1111 1111 1111-165535
7FFF16-bit0111 1111 1111 11113276732767

Use this table as a quick sanity check, or when writing your own conversion routines in C or Python for device drivers or firmware.

Sample Code: Manual Hex to Signed Integer Conversion

If you want to implement this logic yourself, for device firmware or a custom parser, here's the same two's complement math in Python for a given bit width:

def hex_to_signed(val, bits):
    number = int(val, 16)
    if number & (1 << (bits - 1)):
        number -= 1 << bits
    return number

print(hex_to_signed('FFFF', 16))  # Output: -1
print(hex_to_signed('8000', 16))  # Output: -32768

This code uses bitwise operations to apply the same two's complement conversion logic the calculator runs client-side, checking the sign bit and subtracting 2^bits when it's set.

Your Conversion Questions Answered: Signed Integer Converter Insights

Is This the Same as 'Negative Decimal to Hex'?

Yes. A negative decimal number and a two's complement signed integer are the same thing described two different ways. Pick the bit width that matches your use case: 8-bit for a single byte, 32-bit for a typical int, and so on.

Does This Tool Send My Data Anywhere?

No. This hex to signed integer calculator runs entirely client-side in your browser. The hex value and bit width you choose are never uploaded anywhere.

What Is Hexadecimal Representation?

Hexadecimal is a notation in base-16, widely used in computing as a compact, readable way to express binary numbers. Each hex digit represents four binary digits, which makes long binary strings much easier to read and write by hand.

Why Convert Signed Integers to Hex?

Converting a signed integer to hex shows you how negative and positive values are actually stored and transmitted, which matters for debugging, memory inspection, and networking. The site's Signed Integer to Hex Converter handles that reverse direction, and the Decimal to Hex Converter is useful for plain unsigned values.

How Is Bit Width Related to Possible Values?

Bit width defines the possible range for any format. For 8-bit signed values, the range is -128 to 127; for 16-bit, it's -32,768 to 32,767; 32-bit goes much larger still. A hex value that doesn't fit inside the bit width you've selected won't convert correctly, since there aren't enough bits to hold it.

Why Do Negative Numbers Convert to Long Hex Values?

In two's complement, negative decimals are represented as hex values with every bit set close to 1, since encoding a negative number means inverting all the bits of its positive magnitude and adding one. For example, -1 at 8-bit is FF (255 as a plain unsigned number); at 16-bit, it's FFFF. That's why picking the right bit width is essential to reading the result correctly.

What Is Two's Complement in This Context?

Two's complement is the method computers use to encode signed binary numbers. To convert a negative decimal to hex, you invert all the bits of its positive value, add one, and express the result in hex. This is the same logic behind how this hex to signed integer calculator reads a hex value back the other way, checking the sign bit and subtracting 2^n when it's set.

Can the Calculator Handle Floating-Point Numbers?

No. This tool interprets hex strictly as a two's complement integer at your chosen bit width. It doesn't decode IEEE 754 single- or double-precision floating-point values, which use a completely different bit layout (a sign bit, an exponent field, and a mantissa) rather than two's complement.

Input Tips: Valid Hex Formats

  • Hex numbers may start with 0x or not.
  • Upper and lowercase letters are both accepted: FF or ff.
  • Make sure the digit count fits your chosen bit width: two hex digits for 8-bit, four for 16-bit, eight for 32-bit, sixteen for 64-bit.

How Do I Check That the Output Is Correct?

Confirm the signed integer equivalent against the worked examples above, or work the math by hand: check the sign bit, then subtract 2^n if it's set. If your value is byte-order-swapped rather than plain hex, cross-check it with the site's separate Little-Endian Hex to Decimal Converter instead, since this calculator doesn't reorder bytes on its own.

Maximum Input Limits

The online hex to signed integer calculator supports bit widths up to 64 bits, typical for machine word sizes, but your hex entry must fit within the bit width you've chosen. For 32-bit, the input must fit within eight hex digits (FFFFFFFF decodes to -1). Exceeding the selected width means the value can't be interpreted correctly at that width.

Summary: The hex to signed integer calculator is built for translating raw hex into a meaningful signed number for debugging, programming, and low-level data handling. Its two's complement math, selectable bit width, and instant client-side feedback make it useful for anyone working with embedded systems, low-level programming, or networking. You can pair it with the site's Hex to Binary Converter or Binary to Hex Converter to double-check your working, bring in Octal to Hex Converter if your source data uses octal notation, or use Hex to Decimal Converter for a plain unsigned reading of the same bytes. For byte-order-swapped values, the separate Little-Endian Hex to Decimal Converter and Decimal to Little-Endian Hex Converter tools round out the workflow.
