BCD to Decimal Converter
Paste a binary-coded decimal value into the BCD (Binary) Input field and the BCD to Decimal Converter reads each 4-bit nibble back as its own decimal digit. Click Convert and your plain base-10 number appears in the Decimal Output box. Copy the converted result straight from the binary to hex converter with one click once the Hex Output box has filled in.
BCD to Decimal: Understanding What the Tool Calculates
The BCD to Decimal Converter reads your input as a sequence of 4-bit groups, maps every group to its corresponding digit value, and concatenates those digits into the final number. This nibble-by-nibble interpretation mirrors exactly the process used inside digital systems — from seven-segment readouts to banking and finance mainframes — so the output reflects real-world circuit behavior. The solution panel shows each step clearly, giving you both the answer and the reasoning behind it. Enter an address into the IPv4 Address Input field of the ip address to hex converter to get an uppercase or lowercase hex value.
What Is BCD to Decimal Converter?
A BCD to Decimal Converter is an online tool that accepts a Binary-Coded Decimal (BCD) string and returns its human-readable output. In BCD data representation, every decimal digit 0–9 is stored as its own 4-bit binary sequence — called a nibble — rather than encoding the entire number as a single value. The converter automates the interpretation process, eliminating the manual calculation burden and reducing the risk of errors caused by misaligned bit groups or missing prefix zeros.
How to Use the BCD to Decimal Converter
The tool is designed to be intuitive, beginner friendly, and completely free. Here is how to get your result:
- Enter BCD value: Type or paste your BCD string into the entry field. You may include spaces between nibbles (e.g., 0010 0110) or enter them as a continuous string (00100110) — both formats are accepted.
- Random inputs: Click the die icon beside the input area to generate a random BCD number automatically. This is ideal for practising or exploring how different values map to their numeric output.
- Click Convert: Press the CONVERT button to process your input. The result and all working steps appear instantly in the answer panel below.
- View the result: Read the output displayed prominently, along with a step-by-step breakdown of how each 4-bit group was interpreted.
- Clearing the input: Click the CLEAR button to reset the entry field so you can enter a new BCD value without refreshing the page.
- Copying & downloading: Use the Copy Text link to copy the generated answer to your clipboard, or click Download Solution to save it as an image file with a .jpg extension that you can share or archive.
The tool requires no installation, no login, and no internet subscription — just open it in any modern web browser and start converting. You can also use our bcd to decimal converter alongside the related tools listed below for a complete number-system workflow, or bookmark the bcd to decimal converter for quick access during digital logic studies.
BCD to Decimal Converter Widget: Exploring Binary-Coded Decimal
Binary-Coded Decimal (BCD) is a class of schemes in which each decimal digit is represented individually by a fixed-length group of bits. The most widely used variant is the 8421 BCD (also called natural BCD or straight BCD), where the four bit positions carry positional values of 8, 4, 2, and 1 respectively. Because each nibble can only legitimately represent values 0 through 9, BCD trades some space efficiency for the advantage of decimal simplicity — every digit corresponds directly to a 4-bit binary pattern. In electronics engineering and digital logic, understanding this trade-off is fundamental to data representation design.
BCD Variants: Packed BCD, Unpacked BCD, Excess-3, and Gray Code BCD
Beyond standard 8421 BCD, several alternative forms exist for specialised applications:
- Packed BCD: Stores two decimal digits per byte (8 bits), with the upper 4 bits holding the higher-order digit and the lower nibble holding the lower-order digit. This is the most common form and the one this converter handles by default.
- Unpacked BCD: Stores one decimal digit per byte, using only the lower nibble. The upper portion is either zero or used for other purposes such as sign marking.
- Excess-3 code: A self-complementing BCD variant in which each digit is represented by adding 3 to its natural value before storage. For example, decimal 5 maps to 8 (1000) under excess-3. This property makes it useful in certain calculation circuits.
- Gray code BCD: Uses reflected binary code for each BCD digit, ensuring that adjacent values differ by only one bit — a property that minimises errors in mechanical encoders and analog-to-digital conversion circuits.
Understanding these forms matters when you are working with older platforms, reading sensor interface datasheets, or interfacing with microcontrollers that output data in non-standard BCD schemes.
BCD Encoding Table: Decimal Digits 0–9
The BCD encoding table below — essentially a conversion table — is the foundation of every BCD operation. Each row maps one decimal digit to its 4-bit binary equivalent. Values outside this range (1010–1111) are pseudotetrades — codes that do not map to any valid digit in standard notation.
| Decimal | BCD (Binary Coded Decimal) |
|---|---|
| 0 | 0000 |
| 1 | 0001 |
| 2 | 0010 |
| 3 | 0011 |
| 4 | 0100 |
| 5 | 0101 |
| 6 | 0110 |
| 7 | 0111 |
| 8 | 1000 |
| 9 | 1001 |
With 4 bits you can represent 16 combinations (0000–1111), but BCD uses only the first 10. The remaining 6 — the pseudotetrades — are either flagged as invalid input or assigned a special meaning such as a sign character, a comma character, or a fixed-point marker depending on the scheme in use.

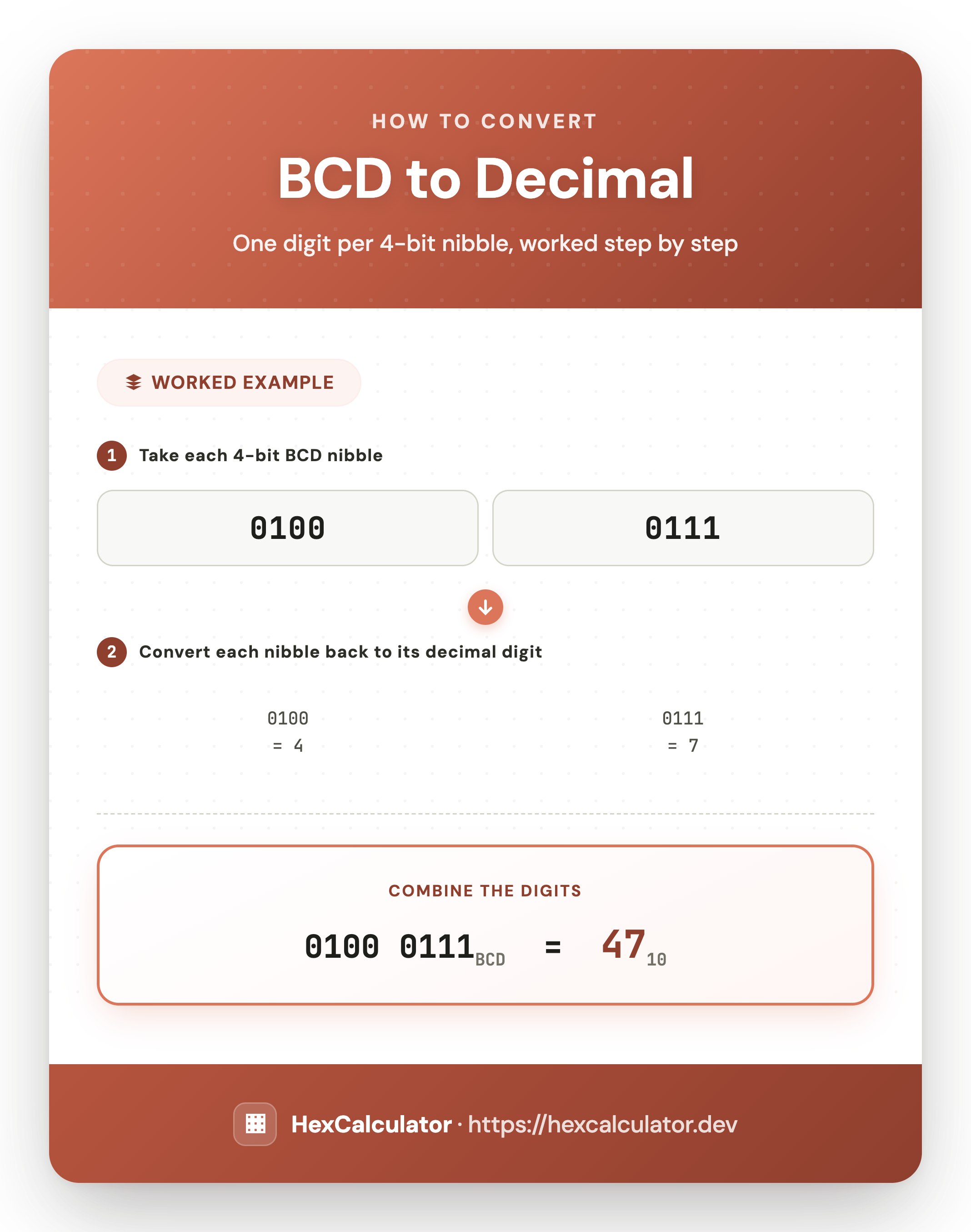

Convert BCD to Decimal: The Step-by-Step Algorithm
The BCD interpretation algorithm follows a consistent, repeatable process. Mastering it by hand first makes it far easier to understand the working steps the converter displays and to spot errors in raw BCD data. Use the hex to base16 converter to clean up inconsistent casing or spacing in a hex string rather than convert it.
BCD Conversion Algorithm: Interpreting BCD Strings
To translate BCD to its numeric value, follow these four steps every time:
- Split into nibbles: Divide the BCD string into 4-bit blocks from right to left. If the total length is not a multiple of 4, pad with prefix zeros on the left to complete the leftmost group.
- Validate each nibble: Confirm that every group falls between 0000 (0) and 1001 (9). Any nibble in the range 1010–1111 is an invalid nibble — flag it before proceeding.
- Convert nibbles: Translate each valid 4-bit group to its digit value using the 8, 4, 2, 1 positional weights.
- Concatenate digits: Write the digit values in the same order as their corresponding nibbles, left to right. The concatenated result is the final numeric output.
Example: Single-Digit BCD
Let us begin with the simplest case — a single-nibble input to confirm the fundamentals:
- Input: 0111
- Split into nibbles: Only one group — 0111
- Validate: 0111 is between 0000 and 1001, so it is a valid BCD digit.
- Convert: 0×8 + 1×4 + 1×2 + 1×1 = 0 + 4 + 2 + 1 = 7
- Result: 0111 BCD = 7
Example: Multi-Digit BCD Number
Now apply the algorithm to a two-digit BCD number for a clearer picture of how nibbles concatenate:
- Input: 0010 0110
- Split into nibbles: 0010 | 0110
- Validate: Both nibbles are between 0000 and 1001 — both valid.
- Convert first nibble: 0×8 + 0×4 + 1×2 + 0×1 = 2
- Convert second nibble: 0×8 + 1×4 + 1×2 + 0×1 = 6
- Concatenate: 2 and 6 → 26
- Result: 0010 0110 BCD = 26
Example: Three-Digit BCD
This third example reinforces the process for a 3-digit number and shows how each nibble maps independently:
- Input: 1001 0100 0001
- Split into nibbles: 1001 | 0100 | 0001
- Validate: 1001 = 9 ✓ | 0100 = 4 ✓ | 0001 = 1 ✓. All are valid BCD digits.
- Convert nibbles: 1001 → 9, 0100 → 4, 0001 → 1
- Concatenate: 9, 4, 1 → 941
- Result: 1001 0100 0001 BCD = 941
Example: Encoding a Decimal Number to BCD
For context, here is the decimal to BCD code mapping (the reverse process), which helps you verify your decoded results:
- Input: Decimal 94
- Split into decimal digits: 9 and 4
- Encode each digit: 9 → 1001, 4 → 0100
- Result: 1001 0100 BCD
This successive mapping of each digit into a 4-bit binary equivalent is called BCD encoding, and it is the exact reverse of what this tool automates for interpretation. Recognising both directions strengthens your understanding of the full BCD-to-decimal relationship.
Decimal to BCD vs. BCD to Decimal: Key Differences Between Encoding Methods
Understanding how BCD compares to pure binary representation helps you decide which scheme suits your project. The table below presents a side-by-side comparison across the most important dimensions:
| Feature | BCD | Pure Binary |
|---|---|---|
| Encoding Method: | Each decimal digit encoded separately into a 4-bit group | Entire number stored as a single value |
| BCD Representation: | 45 → 0100 0101 (8 bits) | 45 → 101101 (6 bits) |
| Straight Binary Layout: | Uses more bits per number | Uses fewer bits — more compact |
| Space Efficiency: | Lower — pseudotetrades waste memory | Higher — no wasted bit combinations |
| Ease of Reading: | High — each nibble maps directly to a visible decimal digit | Low — requires a full binary-to-decimal pass to read |
| Calculation Operations: | Decimal operations are straightforward; addition requires a correction step | Bitwise operations are simple but decimal results need further processing |
| Common Uses: | Digital readouts, calculators, financial systems, timekeeping | General processing, memory addressing, logic circuits |
The core trade-off is clear: BCD sacrifices compactness to gain human readability and the ability to perform exact calculations without approximation errors. Pure binary is more efficient and faster for general-purpose work, but converting values back to decimal for display requires additional logic — logic that BCD simply does not need.
Why BCD Is Still Used in Digital Systems Today
Despite advances in processing that make pure binary far more efficient, BCD remains an active choice in many modern and older platforms. The reasons are rooted in exactness, circuit simplicity, and the requirements of human-machine interface design.
Why Use BCD? Precision and Decimal Arithmetic
The most compelling argument for BCD over floating-point is exact decimal representation. The IEEE-754 format cannot represent many simple fractions exactly — for example, 7.1 in binary floating-point introduces a small but potentially significant approximation error. BCD stores 7.1 as two separate nibbles (0111 for 7 and 0001 for 1 with a fixed-point marker), preserving decimal accuracy completely. This matters enormously in financial calculations, where even microscopic approximations accumulate into significant discrepancies across millions of transactions. Financial platforms, banking and finance software, and point-of-sale terminals have used BCD for decades to eliminate this class of error.
Calculation logic in BCD is admittedly more involved than straight bitwise operations — decimal addition requires a correction step when a nibble sum exceeds 9 — but the trade-off is worthwhile when exactness is non-negotiable. BCD addition can be performed with dedicated calculators that apply the correction automatically.
Common BCD Applications Across Industries
BCD is embedded in a surprisingly wide range of systems. Here are the most common applications you will encounter:
- Seven-segment displays: Each digit on a seven-segment readout maps directly to a BCD nibble. LED and LCD drivers accept BCD input natively, making digit-by-digit updates trivial without extra logic.
- Digital clocks and timers: Hours, minutes, and seconds are each stored as separate BCD nibbles. A clock that reads 09:47:32 stores each of those six digits independently, making time formatting and screen updates straightforward.
- Electronic calculators: Calculator logic has historically relied on BCD internally to avoid extra translation overhead and to guarantee that displayed results match computed results exactly.
- Electronic meters and sensor interfaces: Many measurement devices output numeric data in BCD because their readout circuits are built around BCD-driven panels.
- Mainframe and older platforms: IBM mainframe architectures used packed BCD extensively for archiving and numeric algorithms in commercial data processing.
- Telephone systems and date formatting: Telephone switching equipment and some date formatting protocols store digit sequences in BCD to simplify digit-by-digit processing.
- Analog-to-digital conversion: Certain ADC chips output results in BCD, particularly those designed to drive readout panels directly.
- Microcontroller sensor data: Circuitry reading temperature, pressure, or flow measurements sometimes receives values in BCD from the sensor interface, requiring interpretation before further processing.
Features of This BCD to Decimal Converter Tool
This tool is built around the needs of students, engineers, and developers who want reliable results without fuss. The key features include:
- Instant conversion: Results appear immediately after you click the convert button — no page reloads, no waiting.
- Multi-digit BCD support: Handles single-nibble input, two-digit, three-digit, and large BCD numbers with many nibbles equally well.
- Step-by-step working: Every operation displays a detailed breakdown of how each nibble was interpreted, making it a genuine learning aid rather than a black box.
- Random inputs via die icon: Generate a random BCD number instantly with one click to practice or explore edge cases.
- Clear button: Reset the entry area in a single click without reloading the page.
- Copy answer: Copy the full answer text to your clipboard for pasting into documents, reports, or chat.
- Replay animation: Re-run the animated step-by-step visualization whenever you want to review the process.
- Download answer: Save the output as an image file (.jpg extension) for sharing, studying, or archiving.
- Input validation: The tool checks every nibble against BCD rules and flags any problematic input — including pseudotetrades — before producing a result.
- No installation required: Runs entirely in your browser; no software, no plugins, no account needed.
- Free to use: Fully free with no hidden costs and no subscription required.
Who Should Use This BCD to Decimal Converter Calculator
This tool is built for anyone who encounters binary-coded decimal data in their work or studies. Specific audiences who benefit most include:
- Learners: Those studying digital electronics, computer science, electrical engineering, or information technology use this tool to check homework answers, explore BCD encoding, and build intuition about numeral systems. Education in these topics is greatly supported by interactive tools that show each working step.
- Embedded systems engineers: Engineers reading BCD-formatted sensor data from microcontrollers or interpreting BCD output from ADC chips use it for rapid troubleshooting during circuit design and hardware validation.
- Software developers: Programmers working on numeric readouts, clock interfaces, or older platform integration use it to verify that their BCD parsing logic produces correct values. An ascii converter or similar tool is often used alongside it for text-level data representation checks.
- Test engineers: QA professionals performing software testing or hardware validation on BCD data pipelines use the converter to generate expected outputs and confirm device behavior.
- Digital circuit designers: Engineers designing logic circuits that process BCD data — such as BCD adders or BCD-to-seven-segment decoders — use it to validate simulation results.
- Educators: Teachers and lecturers use the step-by-step visualization as a classroom demonstration tool to illustrate coding and interpretation principles visually.
- Hobbyists: Electronics enthusiasts working on DIY projects involving seven-segment readouts or timekeeping circuits use it to verify wiring and programming logic.
- Data analysts: Professionals working with older platforms that output numeric data in BCD use the converter to transform values for reporting and visualization pipelines.
Tips for Accurate BCD Conversions Every Time
Applying a few simple habits eliminates the most common mistakes when working with BCD data:
- Always group from the right: When splitting a BCD string into 4-bit blocks, always start from the rightmost bit. This ensures that the least-significant digit is handled correctly even if the total length is not a multiple of four.
- Pad with leading zeros: If the leftmost group has fewer than 4 bits, add leading zeros to form a complete nibble. For example, a 6-bit string like 100111 becomes 0010 0111 after padding — which gives 27, not a different value caused by misalignment.
- Validate before converting: Check every nibble against the valid range (0000–1001) before attempting interpretation. Any nibble from 1010 to 1111 is a pseudotetrade and signals either corrupt data, a different scheme, or an intentional special value (sign character, decimal point, etc.).
- Verify 4-bit boundaries: Confirm that your BCD string length is a multiple of 4 before starting. An odd-length string is a strong indicator of a missing or extra bit — usually caused by a copy-paste error or a transmission fault.
- Distinguish packed from unpacked BCD: In packed BCD, two digits per byte is the standard — the upper nibble and lower nibble each hold one digit value. In unpacked BCD, one digit per byte means only the lower nibble carries the value. Mixing them up produces incorrect output.
- Check byte alignment: In packed BCD with byte boundaries in mind, always ensure your string length is even. An odd number of nibbles indicates a missing prefix zero or a framing error.
Extended tip: Handling invalid BCD input and pseudotetrades
When you encounter an invalid nibble (a value between 1010 and 1111), do not simply discard it and continue. First, check whether the scheme assigns it a special meaning — for instance, some packed BCD formats use 1100 and 1101 as positive and negative sign nibbles (sign nibble conventions vary by platform). Others use pseudotetrades to represent a comma character or a decimal point in fixed-point numbers. If none of these special meanings apply, the nibble represents a genuine data error. Before re-entering the value, inspect your original BCD source — whether that is a sensor register, an older platform export, or a manual entry — for the root cause. The converter's validation will flag the specific invalid nibble so you know exactly which group to investigate.
BCD vs. Binary: Advantages, Disadvantages, and Practical Trade-offs
No scheme is universally superior — the right choice depends on your application. BCD offers exact decimal output and direct human readability at the cost of memory inefficiency and slower operations relative to pure binary. Understanding these trade-offs helps you make informed decisions in circuit design, software development, and data storage. Unlike octal, which groups bits in threes, BCD always uses groups of four, making it uniquely suited to digit-by-digit decimal work.
- Advantage — no approximation: Unlike floating-point numbers or IEEE-754 format, BCD can represent any integer or fixed-point value without rounding. This makes it ideal for financial and scientific applications where exact values are mandatory.
- Advantage — readability: BCD values can be read digit by digit without a full translation pass, making troubleshooting and reading measurements far easier.
- Disadvantage — memory inefficiency: Because 6 of every 16 possible four-bit combinations are pseudotetrades, roughly 37.5% of BCD capacity goes unused compared to pure binary, which uses all combinations efficiently.
- Disadvantage — operations more complex: BCD requires additional correction logic. Bitwise hardware is simpler and faster; BCD operations — particularly multiplication and division — demand more clock cycles and more involved circuit design.
- Disadvantage — slower throughput: Because BCD operations require correction steps after each pass, BCD-based computation is measurably slower than equivalent bitwise operations on the same circuit.
For applications involving numeric readouts, date formatting, time formatting, or financial computing, BCD's strengths outweigh its weaknesses. For general processing, memory-constrained systems, or high-speed numeric algorithms, straight binary or hex notation typically delivers better performance and density.
Related Conversion Tools for Binary and Decimal Number Systems
Related Tools for BCD, Decimal, Binary, and Gray Code Conversion
If you work regularly with numeral systems and binary codes, these companion calculators complement the bcd to decimal workflow:
- Decimal to BCD Converter — Convert any decimal number into its BCD form with step-by-step digit-by-digit encoding.
- BCD Addition Calculator — Perform BCD addition with automatic carry correction, displayed in full working steps.
- BCD to Excess-3 Converter — Transform standard BCD values into excess-3 code for use in self-complementing calculation circuits.
- Excess-3 to Decimal Converter — Interpret excess-3 encoded values back to human-readable notation.
- Excess-3 to BCD Converter — Reverse the excess-3 process and recover the original BCD form.
- Gray Code to Decimal Converter — Interpret Gray code sequences to decimal, useful for mechanical encoder and ADC output analysis.
- Decimal to Gray Code Converter — Encode decimal integers into Gray code for use in circuit design and error-minimising applications.
- Binary to Gray Code Converter — Convert a value directly to its Gray code form without going through decimal.
- Gray Code Generator — Generate complete Gray code sequences for any bit width, ideal for logic design verification.
- Even Parity Calculator — Calculate the even parity bit for a binary string to support error-detection in data transmission.
- Odd Parity Calculator — Compute the odd parity bit for error-checking in communication protocols.
- ASCII to Decimal Converter — This ascii converter translates ASCII character codes to their numeric equivalents for text processing and troubleshooting.
- ASCII to Binary Converter — This ascii converter translates ASCII text characters into their bit-level representation for low-level programming and protocol analysis.
- BCD to Binary Converter — Convert BCD-encoded values to their straight binary equivalent.
- BCD to Hex Converter — Transform BCD values into hex notation for use in assembly language and register-level troubleshooting.
- Hex to BCD Converter — Reverse the process and recover BCD form from hex input.
Frequently Asked Questions About the BCD to Decimal Converter
What is BCD to Decimal Converter?
A BCD to Decimal Converter is a free online tool that takes a Binary-Coded Decimal string as input and returns the equivalent numeric output. It automates the process of splitting the BCD string into 4-bit nibbles, validating each nibble, converting it to a digit value, and concatenating the digits into the final result — all with full working steps displayed for learning and verification. User inputs are validated instantly, so any problematic nibble is flagged before a result is produced.
How does a BCD to Decimal Converter work?
The tool reads your BCD string from left to right, splitting it into 4-bit blocks. Each block is treated as an independent four-bit binary equivalent and interpreted using the 8-4-2-1 positional values. The decoded digits are then written in the same order as the original nibbles to produce the final numeric output. The tool also validates each nibble and highlights any values outside the valid BCD range before displaying the result.
How do I know if my data is in BCD format?
Check the documentation of your device, system, or data source. BCD is commonly used in digital readouts, electronic calculators, clocks, sensor interfaces, and certain older mainframe applications. If each decimal digit appears to be stored separately in 4 bits and the values 1010–1111 never appear (or appear only as separators), your data is likely in BCD form.
What happens if I enter an invalid BCD value?
The tool performs input validation on every nibble. If any 4-bit group falls in the pseudotetrade range (1010–1111), it flags that specific invalid nibble and displays an error message identifying which group caused the problem. This prevents incorrect output and helps you locate the data error in your source.
Can BCD represent negative numbers?
Standard BCD represents only non-negative integers. However, signed BCD variants do exist: some formats use a dedicated sign nibble at the most significant position — for example, 1100 for positive and 1101 for negative — while others use complement representation to encode negative values. This tool handles standard unsigned BCD; for signed BCD, you would need to interpret the sign nibble separately according to your specific scheme.
Why does BCD use more space than binary?
BCD uses 4 bits to represent each decimal digit 0–9, but 4 bits can theoretically encode 16 distinct values. The six unused combinations (pseudotetrades) represent wasted capacity. Pure binary encodes an entire number using the minimum number of bits needed, so it is always more compact. BCD accepts this memory overhead in exchange for decimal simplicity and exact representation without approximation.
Can I convert any binary number to decimal with this tool?
No. This tool is specifically a BCD interpreter — it expects each group of four bits to represent a digit 0–9. If you enter a general value that uses the full 0–15 range per nibble, the tool will flag the values above 9 as invalid. For general binary-to-decimal translation, use a dedicated converter.
Who can use this BCD to Decimal Converter?
Anyone who needs to interpret BCD data can use this tool — it requires no technical expertise beyond knowing what input to enter. Students, software developers, embedded systems engineers, test engineers, digital circuit designers, educators, hobbyists, and data analysts all benefit from it. The user-friendly interface and step-by-step output make it equally suitable for beginners in education settings learning about numeral systems and for professionals performing rapid validation during troubleshooting.
Why use BCD?
BCD is used when exact decimal operations are required and when numeric data must interface directly with human-readable readouts. It eliminates the approximation errors introduced by floating-point representations, making it the preferred scheme in financial calculations, banking and finance applications, and any context where decimal accuracy is critical. It also simplifies the design of clocks, electronic meters, and seven-segment display circuits by allowing each digit to be driven independently without complex translation logic.
