HSV to Hex Converter

What Is a Hex Color Code — and Where to Convert HSV to Hex

A hexadecimal (hex) color code is a compact, text-based representation used throughout web development, CSS styling, SVG, and virtually every digital output platform. It encodes the same red green blue information as the additive system but writes each channel as a two digit hexadecimal number rather than a decimal. The result is a six-character hex string — a true hex triplet — that fits neatly in CSS properties, design tokens, json configs, and documentation tables. Understanding the hex notation is essential for any rgb to hsv or hsv values to hexcode workflow. Paste your text into the text to hex converter whenever you need its hexadecimal character codes for a log or spec.

Anatomy of a Six-Digit Hex Code — The Hexadecimal Format Decoded

Every standard hex color follows the RRGGBB pattern, prefixed by a hash symbol. The first pair (RR) represents the primary warm channel, the second (GG) represents the verdant channel, and the third (BB) represents the cool channel. Each pair is a hexadecimal number ranging from 00 to FF — equivalent to 0 to 255 in decimal notation — using the base-16 digits (0–9 and A–F). The range from 00 to FF encodes the full intensity span of each color component in hexadecimal notation. A channel near 00 contributes almost no intensity; a reading of FF drives that component to full strength. So #000000 is fully dark, #FFFFFF is fully bright, and #FF0000 is the warm primary at maximum. When you need transparency, you can extend the format to an eight digit hex — a hex with alpha channel — producing an rgba-equivalent in hexcode format for overlays, shadows, and other effects that require an alpha component.

Where Hex Color Codes Are Used Across Web & App Development

Hex color codes dominate web specification for several reasons. They offer cross-platform consistency — the same six digit hex renders identically in every browser, authoring tool, and operating system. Their compact representation makes them ideal for stylesheet declarations, markup attributes, and SVG fills. In design tools integration, Figma, Sketch, and Adobe XD all accept and export hex natively, making them the universal currency of shade sharing. Front-end developers rely on hex for stylesheet variables, Tailwind utility classes, and design token pipelines. A stable representation like a hex notation also fits cleanly into style guides, brand books, and shade libraries, where storage must be unambiguous and portable.

The Complete HSV to Hex Conversion Formula

The math behind every hsv to hex conversion is a two-stage pipeline: first you translate the HSV triple into its additive channel equivalents, then you map each channel into a two digit hexadecimal pair. Understanding both stages gives you full control over the process and makes it easy to implement the hsv to hex algorithm in any language — including scripted automation, JavaScript utilities, or rendering integrations. You can also reverse the pipeline using hex to hsv tooling when you need to recover the original HSV parameters from a stored hex notation.

HSV to RGB Conversion via Chroma

The intermediate step is an hsv to rgb calculation that works by computing a chroma quantity, a helper value, a temporary triple based on the hue sector, and an offset quantity. First, normalize intensity and brightness by dividing each by 100. Then compute chroma and a secondary helper \(X\). Select the appropriate temporary triple for your angular sector, add the offset \(m\), and finally scale to 255 and round to integers.

The full formula in notation:

The temporary triple \((R_1, G_1, B_1)\) is chosen by angular range:

• \(0 \le H < 60\): \((C,\ X,\ 0)\)
• \(60 \le H < 120\): \((X,\ C,\ 0)\)
• \(120 \le H < 180\): \((0,\ C,\ X)\)
• \(180 \le H < 240\): \((0,\ X,\ C)\)
• \(240 \le H < 300\): \((X,\ 0,\ C)\)
• \(300 \le H < 360\): \((C,\ 0,\ X)\)

Then scale to 255:

RGB to Hex via Decimal-to-Hex Mapping

Once you have channel readings in the 0 to 255 range (0..255), the translation step is straightforward. Convert each integer to its base-16 equivalent using a dec to hex utility function, then use padstart (or equivalent) to ensure each pair is always exactly two characters — prepending a leading zero for readings below 16. Finally, concatenate pairs and prepend the hash symbol to produce the final hexcode:

function decToHex(n) {
  return n.toString(16).padStart(2, "0").toUpperCase();
}

function hsvToHex(H, S, V) {
  // Step 1: normalize
  const s = S / 100;
  const v = V / 100;
  // compute chroma
  const C = v * s;
  const X = C * (1 - Math.abs(((H / 60) % 2) - 1));
  const m = v - C;

  let r1, g1, b1;
  if      (H < 60)  { r1=C; g1=X; b1=0; }
  else if (H < 120) { r1=X; g1=C; b1=0; }
  else if (H < 180) { r1=0; g1=C; b1=X; }
  else if (H < 240) { r1=0; g1=X; b1=C; }
  else if (H < 300) { r1=X; g1=0; b1=C; }
  else              { r1=C; g1=0; b1=X; }

  // scale to 0-255
  const R = Math.round((r1 + m) * 255);
  const G = Math.round((g1 + m) * 255);
  const B = Math.round((b1 + m) * 255);

  // Step 2: rgb to hex
  return "#" + decToHex(R) + decToHex(G) + decToHex(B);
}

This helper routine is the same logic your browser's shade management system, a scripted colorsys module, and every major converter uses internally. It is also the algorithm running inside this tool.

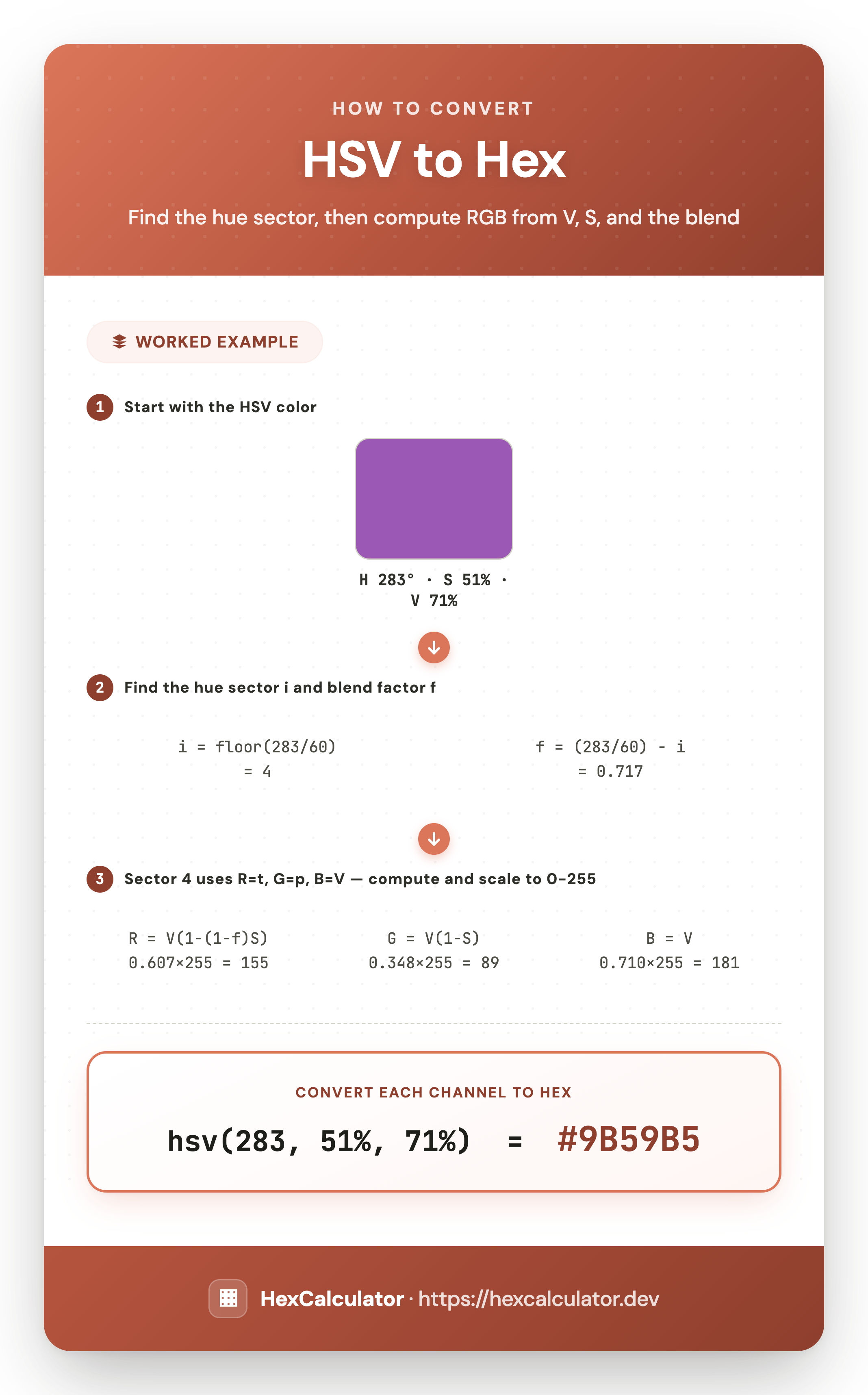

Worked HSV to Hex Examples — Step by Step

Example conversion 1: hsv(24, 100%, 100%) → #FF6600

1. Normalize: \(s' = 1.00,\; v' = 1.00\)
2. Chroma: \(C = 1.00 \times 1.00 = 1.00\)
3. Intermediate quantity: \(X = 1.00 \times (1 - |( \frac{24}{60} \bmod 2) - 1|) = 1.00 \times 0.4 = 0.40\)
4. Angular sector 0–60 → component set \((C,\; X,\; 0)\)
5. Offset: \(m = 1.00 - 1.00 = 0\)
6. Scale to 255: \(R=\text{round}(1.00 \times 255)=255,\; G=\text{round}(0.40 \times 255)=102,\; B=\text{round}(0 \times 255)=0\)
7. Dec to hex mapping: 255 → FF, 102 → 66, 0 → 00
8. Result: #FF6600

Example conversion 2: hsv(150, 60%, 80%) → #52CC8F — a mid-saturation teal-green ideal for a design swatch.

1. Normalize: \(s'=0.60,\; v'=0.80\)
2. Chroma: \(C=0.80 \times 0.60 = 0.48\)
3. Intermediate quantity: \(X = 0.48 \times (1 - |(\frac{150}{60} \bmod 2) - 1|) = 0.48 \times 0.5 = 0.24\)
4. Angular sector 120–180 → component set \((0, C, X) = (0, 0.48, 0.24)\)
5. Offset: \(m=0.80 - 0.48 = 0.32\); channel readings \((82, 204, 143)\)
6. Hexadecimal: 82→52, 204→CC, 143→8F → #52CC8F

Edge cases — dark to bright boundary:

• hsv(0, 0%, 0%) → fully dark #000000: chroma is 0 because brightness is 0%; all color components scale to 0.
• hsv(0, 0%, 100%) → fully bright #FFFFFF: intensity is 0 so chroma is 0; \(m=1.0\), all components scale to 255.

These boundary examples illustrate the brightness axis effect: 0% brightness forces a fully dark output regardless of hue, while 100% with zero intensity forces a fully bright neutral — the extremes of the dark-to-bright range.

Best Practices When Working with HSV and Hex Together

The strongest workflow doesn't force you to choose between HSV and hex — it uses each notation where it excels. A clear system with defined responsibilities for each shade encoding prevents precision discrepancies and inconsistent accuracy across platforms. These tips are drawn from real-world visual and interface work.

Keep Your Shade System Predictable

Define clear roles within your workflow: use HSV inside selection interfaces and internal authoring tools for interactive editing and visual exploration; use hex in shade tokens, stylesheet properties, and exported swatches. When every team member knows that HSV lives in the picker and hex lives in the token file, you eliminate the risk of manual recalculation errors and precision discrepancies creeping into your work. Document your base shade set as hex notations in style guides so that brand identities stay consistent across web, print, digital art, and branding deliverables.

When HSV Is the More Practical Choice for Shade Exploration

HSV wins whenever you're doing shade exploration or live adjustments. Dropping the brightness by 10% produces a consistently darker tone without touching the rotational angle — something that requires adjusting all three color components in the additive system. Reducing intensity toward 0% desaturates gracefully to a neutral tone without shifting color perception of the hue. This makes HSV the preferred input mechanism in digital painting software, 3D applications, and visual production tools. Variation across a swatch set — lighter, darker, more vivid — is controlled by a single slider, speeding up exploration significantly compared to channel-by-channel adjustment.

Combine Multiple Representations for Complex Creative Projects

Most professional creative projects touch several encodings. Your rendering layer may demand channel triplets; your stylesheet may use hex; your swatch builder may expose HSL or even CMYK. Chain conversions through the intermediary that best preserves accuracy: for example, use hsv to rgb first, then the rgb to hex step, an HSL mapping, or a CMYK translation depending on the target. Use RGBA or hex with alpha (an eight digit hex) whenever you need transparency for overlays or shadows. For scripted pipelines, a built-in utility covers the hsv to rgb step and you can wrap it with a dec to hex helper to complete the pipeline. Always validate your output against a live preview before shipping — especially when hex to hsv recovery is needed for debugging precision discrepancies. Check tonal contrast against background shades to maintain accessibility standards in your frontend work.
