Octal to Hex Converter

The Octal to Hex Converter takes a base-8 value from your Octal Input field and converts it into hexadecimal. Click Convert to see the result in Hex Output, and switch on the uppercase toggle if you need capital A-F in the result. Enter two hex values and an operation into the hex calculator to get an answer displayed both as hex and decimal for easy verification.

Quick Octal to Hex Converter Tool

How to Use the Octal to Hex Converter

Type or paste your Octal Input into the input box. The Hex Output updates live as you type, or you can click Convert to trigger it manually.
Batch conversion: put more than one octal value on its own line, and every line converts independently, in order — handy for converting a whole list at once instead of one value at a time.
Switch on the Uppercase checkbox for capital A-F in the hex result, and the Group digits checkbox to space the output into readable groups instead of one unbroken string.
Use the Clear button to reset the input box for a new calculation.
Click the Copy button next to the output field to copy your result for reports, homework, or code comments.

This octal to hex converter is ideal for students, programmers, electronics engineers, and anyone needing quick and accurate octal-to-hexadecimal transformations for coursework or low-level computing work — and because it uses arbitrary-precision (BigInt) arithmetic under the hood, it isn't limited to 32-bit or 64-bit integer ranges the way many calculators are.

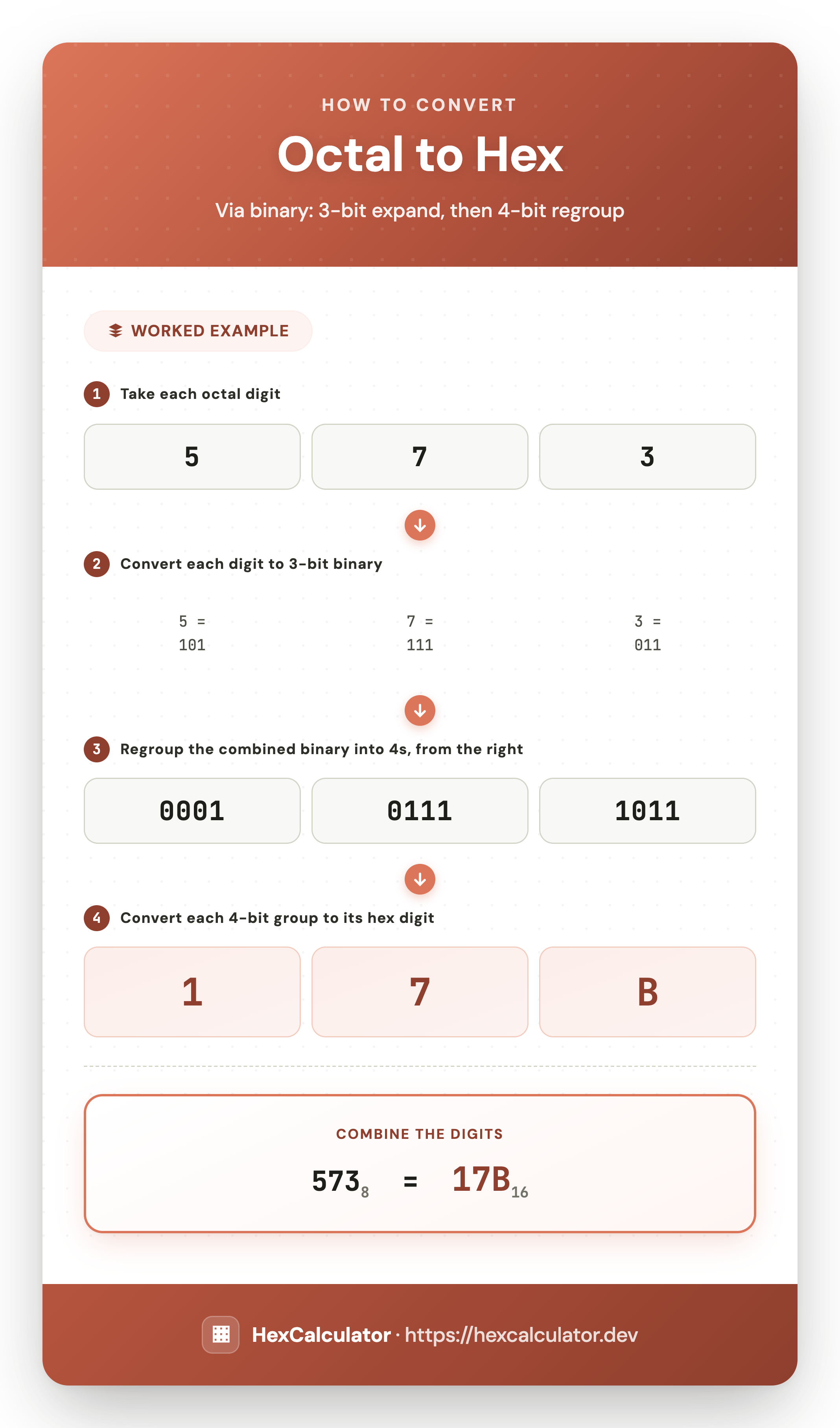

Infographic showing how to convert octal 573 to hexadecimal by going through binary: expand each octal digit to 3 bits, regroup the combined bits into 4s, then convert each group to get hex 17B — Octal to Hex Converter: 573 = 17B

Hexadecimal Result and Step-by-Step Solution: From Octal to Hex

Step One: Convert Octal to Decimal

Write down the octal value. For illustration, let’s use 345₈.
The formula for octal to decimal conversion is:
$$ N_{10} = \sum_{i=0}^{n-1} d_i \times 8^i $$
where $d_i$ is the octal digit in position i from the right.
Apply the formula:
3 × 8² + 4 × 8¹ + 5 × 8⁰ = 192 + 32 + 5 = 229_{10}

Step Two: Convert Decimal to Hex

Start with the decimal value from step 1 (e.g., 229).
Divide by 16 and record both quotient and leftover.
$$229 \div 16 = 14 \text{ remainder } 5$$
14 in hex is E. So, write down E and 5.
Read from the bottom (least significant place) up: 229₁₀ = E5₁₆

Step-by-Step Method (Octal → Decimal → Hex)

Transform the octal input to decimal using sums of powers of eight.
Then swap from decimal to hexadecimal using division and remainders, assigning letters A–F for values 10–15.
Combining results: You now have your final octal to hexadecimal result.
For 345₈: (345)₈ = (229)₁₀ = (E5)₁₆
Result: 345₈ = E5₁₆

Use the process above for any octal input to reliably reach your hexadecimal result every time! Paste a hex color into the hex to pantone converter and it returns the nearest match from its reference list, flagged as unofficial.

Understanding Octal and Hexadecimal Number Systems

What are Octal Numbers (Base-8)?

Octal numbers (base-8) use only eight numerals: 0, 1, 2, 3, 4, 5, 6, 7.
The octal counting method is used in computer-related fields and legacy computer coding, where binary-to-octal grouping streamlines large bit patterns.
Each octal digit represents exactly three bits, making octal a useful shorthand for representing long binary data.

What are Hexadecimal Numbers (Base-16)?

Hexadecimal numbers (base-16) employ sixteen glyphs: 0–9 and then A–F for values ten through fifteen.
The hexadecimal code is favored in software engineering and machine code for its compactness and alignment with nibble-based (4 bits) architectures.
Key in register inspection and debugging due to ease of correlating hexadecimal values with memory layouts.

Both values are essential for professionals working across computer, mathematical, and technical applications seeking clarity and efficiency in value conversion. The fastest way to make sense of a raw hex timestamp is to paste it into the hex to date converter and read the UTC date output.

How to Convert Octal to Hex: Two Proven Methods

Step-by-Step Method (Octal → Decimal → Hex)

Step 1: Convert the octal number to decimal:
$$N_{10} = \sum_{i=0}^{n-1} d_i \times 8^i$$
Worked case for 154₈:
(1 × 8²) + (5 × 8¹) + (4 × 8⁰) = 64 + 40 + 4 = 108₁₀
Step 2: Convert decimal to hex:
$$\text{Quotient},~\text{Leftover Value}\quad\text{(assign leftover to hex position)}$$
108 ÷ 16 = 6 leftover 12 (C)
6 ÷ 16 = 0 leftover 6
Result: 154₈ = 6C₁₆

Step-by-Step Method (Octal → Binary → Hex)

Step 1: Change each octal place to a 3-bit binary group (ex: 154₈
1 → 001, 5 → 101, 4 → 100 → 001 101 100)
Step 2: Organize the binary stream into 4-bit sections from the beginning:
001 101 100 → 0011 0110 0 (pad with zeros as needed → 0001 1011 0100)
Step 3: Relate each 4-bit section to its corresponding hex value:
0001 → 1
1011 → B
0100 → 4
Final result: 154₈ = 6C₁₆

Why Use Binary as an Intermediate?

Binary representation bridges the gap between octal (grouped in 3 bits) and hex (grouped in 4 bits) methods, making swaps more systematic.
Convenient for long values, mixed integer/fractional data, and computational platforms where bitwise accuracy is vital.
Binary as an intermediate ensures no information loss during complex swaps.

Octal to Hexadecimal Conversion Table — Octal/Binary/Hex Mapping

Use the comprehensive reference conversion table below to see the relationship between octal digits, their 3-bit and 4-bit binary groups, and the corresponding hex digits for fast lookup during octal to hex conversion:

Octal	Binary (3-bit)	Binary (4-bit)	Hex Digit
0	000	0000	0
1	001	0001	1
2	010	0010	2
3	011	0011	3
4	100	0100	4
5	101	0101	5
6	110	0110	6
7	111	0111	7
10	001 000	1000	8
11	001 001	1001	9
12	001 010	1010	A
13	001 011	1011	B
14	001 100	1100	C
15	001 101	1101	D
16	001 110	1110	E
17	001 111	1111	F

This table is optimal for cross-referencing during batch transformations, and for understanding the structure of octal, octal binary, and hexadecimal notation.

Real-World Uses: Octal to Hex Conversion, Step by Step

Worked Example 1: Simple Octal

Transform 154₈ to hex

Step 1: 1 × 8² + 5 × 8¹ + 4 × 8⁰ = 64 + 40 + 4 = 108₁₀
Step 2: 108 ÷ 16 = 6 leftover 12 (C), so answer is 6C₁₆.

Result: 154₈ = 6C₁₆

Worked Case 2: Converting Several Octal Values at Once

Batch-convert three octal values in one pass

This converter's Octal Input box accepts more than one whole-number octal value at a time — put each one on its own line and every line converts independently:

Octal Input:
17
154
345

Hex Output:
F
6C
E5

Note that the input box expects whole octal integers, one per line — it doesn't parse a decimal point within a single value.

Worked Case 3: Octal to Hex via the Binary Bridge

Transform 345₈ to hex using the octal-to-binary-to-hex path

Step 1: Convert each octal digit to its 3-bit binary group:
3 → 011, 4 → 100, 5 → 101 → concatenated: 011100101 (9 bits)
Step 2: Pad with leading zeros so the total length divides evenly into 4-bit groups, then regroup from the right:
000011100101 → 0000 1110 0101
Step 3: Convert each 4-bit group to its hex digit:
0000 → 0, 1110 → E, 0101 → 5 → 0E5
Drop the leading zero: 345₈ = E5₁₆ — matching the decimal-bridge result from Step Two above.

Result: 345₈ = E5₁₆

For any transformation, remember: step 1 is usually octal to decimal or octal binary, step 2 leads to the hexadecimal value, and combining results verifies your answer.

Octal to Hexadecimal Converter: Frequently Asked Questions

What is Octal to Hexadecimal Converter?

This tool computes the hexadecimal equivalent of any inputted octal value, visualizes each phase, and summarizes the overall process.

Can I Convert Octal to Hex Directly Without Binary?

Yes, you can use octal number to hexadecimal methods by going through decimal as an intermediary. Octal binary can make the steps more straightforward, but is not a strict requirement.

Is This Tool Accurate for Very Large Values?

Absolutely. This octal to hex converter is optimized for accuracy, even with very extensive or complex numerals.

Do I Need to Pad Zeros While Grouping Octal Binary?

When you use binary as an intermediate, pad zeros on the far left (or right, for fractions) to complete groups of 4 bits for precise hex transformation.

Why is Hexadecimal Preferred Over Octal in Code Tasks?

Hexadecimal maps directly to a nibble (4 bits), aligning with common byte-sized addressing and making it invaluable for data visualization, quick debugging, and byte-level software engineering in hardware design.

Tips for Working With This Octal to Hex Converter

Copy the result using the Copy button next to the output field for use in reports, code snippets, or homework.
Remember the input box accepts one octal value per line for quick batch conversion — no need to convert a whole list one at a time.
If your octal input has stray spaces, they're ignored automatically; any character outside 0-7 triggers a clear error message naming the invalid line.
