Octal to Binary Converter
Enter an octal number and the Octal to Binary Converter expands each digit into its 3-bit binary equivalent for you. Type or paste your value into the Octal Input box, and the full binary string appears in Binary Output as you type — no separate step needed, though a Convert button is there if you prefer it. If your code expects uppercase A-F digits, the decimal to hex converter has a toggle that formats the output that way automatically.
Step-by-Step Guide: Octal to Binary Conversion Explained
Understanding the Octal Digit and Binary Number System
The octal number system is a base-8 numeral system, meaning it uses eight symbols: digits 0,1,2,3,4,5,6,7. Each octal digit expresses a value in powers of eight. For example, the octal number (247)8 equals \(2 \times 8^2 + 4 \times 8^1 + 7 \times 8^0\). Octal notation became particularly popular in older computer applications and software development because they offered a compact representation over binary for certain word sizes, such as 12-bit, 24-bit, or 36-bit architectures. For a quick way to left- or right-shift a hexadecimal number, the hex shift calculator produces the shifted result immediately after you click Calculate.
The binary numeral system is a base-2 system, representing numbers using just two symbols: 0 and 1 — the language of processors and circuits. Each binary digit, also known as a bit, reflects a single electrical state: off (0) or on (1). The binary number you get from converting an octal value is critical for circuits, computation, and software fields where bit-level accuracy is paramount.
Detailed Conversion Steps

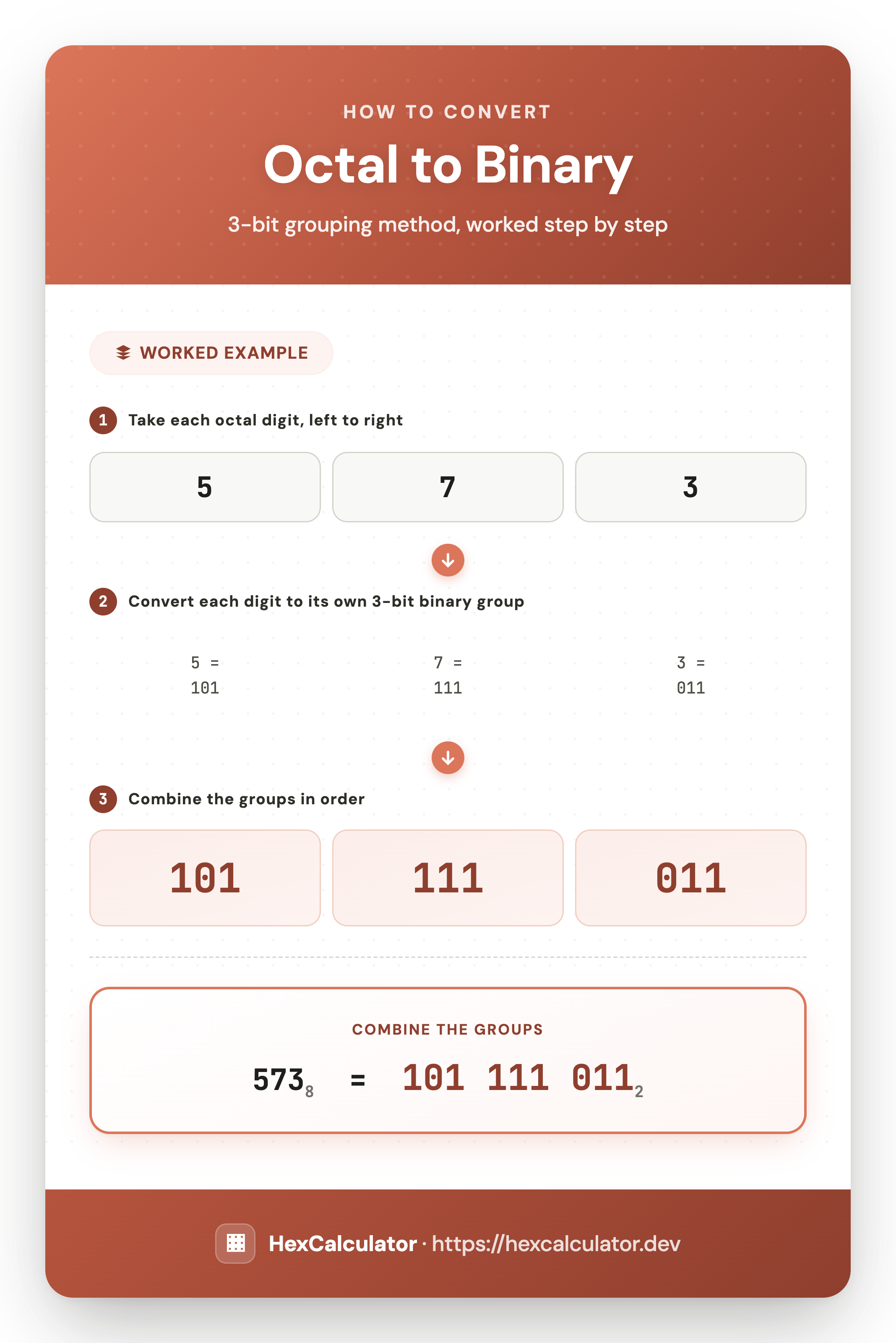

The quickest octal to binary conversion is the direct method, exploiting the direct mapping between a single octal digit and a group of 3 binary digits. Follow the steps given below:
- Step 1: Write down each digit of the octal number separately.
- Step 2: Convert each octal digit to its 3-bit binary equivalent using a conversion table (see below). This works because 8 = 23 — each octal digit maps exactly to 3 binary digits.
- Step 3: Combine these groups of 3 binary digits left-to-right to get your final binary number.
Alternatively, you can convert the octal number to decimal first, then convert the decimal number to binary, but the direct substitution method is faster, less error-prone, and is the standard approach in both education and computer science.
Octal to Binary: Example Walkthroughs
- Write down the octal number: 1 2 3 4
- Map each digit to its 3-bit binary word:
- 1 → 001
- 2 → 010
- 3 → 011
- 4 → 100
- Combine all groups:
1 2 3 4 001 010 011 100
- Result: (1234)8 = (001010011100)2
For an octal number with a fraction, for example: (6574.73)8:
Octal digits: 6 5 7 4 . 7 3 421 Group: 421 421 421 421 . 421 421 Binary: 110 101 111 100 . 111 011
Combined: (6574.73)8 = (110101111100.111011)2
Quick Reference: Octal to Binary Conversion Chart & Table
Octal Digits to 3-bit Binary Words
The following conversion table shows how each octal value (0–7) is uniquely mapped to a 3-bit word — the basis for all octal to binary conversion: The fastest way to convert hex bytes into Base64 text is the hex to base64 converter, which produces a ready-to-copy string with one click.
| Octal Digit | 3-bit Binary Word |
|---|---|
| 0 | 000 |
| 1 | 001 |
| 2 | 010 |
| 3 | 011 |
| 4 | 100 |
| 5 | 101 |
| 6 | 110 |
| 7 | 111 |
Because each octal digit always maps to exactly 3 binary digits, you can use this conversion chart repeatedly for values of any length. This pattern holds for both integer and fractional values in octal.
How to Use the Conversion Table
- Line up your octal value's digits.
- For each value, look up the corresponding 3-bit binary word in the table above.
- Write all 3-bit groups in sequence, maintaining their order. For fractional octal numbers, do the same for the values after the decimal point—keeping the binary point aligned.
Here's how it looks in practice, mapping a few octal values to binary numbers:
| Octal Number | Binary Value |
|---|---|
| 154 | 1101100 |
| 37 | 11111 |
| 200 | 10000000 |
| 10 | 1000 |
| 12 | 1010 |
Convert Octal to Binary: Practical Examples and Conversion Exercises
Worked Example 1: Direct Conversion (octal number 75426)
Step 1: Separate the values: 7 5 4 2 6 Step 2: For each value, write its binary equivalent using the table: 7 → 111 5 → 101 4 → 100 2 → 010 6 → 110 Step 3: Combine: 111 101 100 010 110 Final Answer: (75426)8 = (111101100010110)2
Worked Example 2: Octal with Fractional Part
Example: Convert (6574.73)8 to binary. Values: 6 5 7 4 . 7 3 Table mapping: 6 → 110 5 → 101 7 → 111 4 → 100 7 → 111 3 → 011 Put it together: 110101111100.111011
The fractional section works identically, preserving the position of the binary point and the groups. Developers debugging encoding issues with emoji or accented characters can check the text to utf-8 hex converter to see the exact UTF-8 byte sequence produced.
Practice: Try It Yourself
- Q.1: Convert 4188 to a binary number.
- Try mapping each symbol (4, 1, 8) to 3-bit groups—but note, 8 isn't a valid octal value (use values 0–7). Identify and correct errors in your input.
- Q.2: Convert 1088 to a binary number.
- Again, verify all symbols are valid for the octal base before transforming.
- For valid practice activities, try these:
- Convert 1228 to binary.
- Convert 2008 to binary.
- Convert 108 to binary.
Octal to Binary Converter: Explore More Numeral Systems & Conversion Methods
- Octal to Decimal Converter
- Octal to Hexadecimal Converter
- Binary Converter Tools
Also, see: Decimal to Octal, Binary to Decimal, ASCII to Binary, Hex to Decimal — fast conversion tools for all your numeral systems needs in engineering, school, computation and education. Conversion of octal to binary number is just one of many base conversion scenarios in mathematics.
Feedback & Frequently Asked Questions About Octal to Binary Converter
Common Octal to Binary Topics
- What is the fastest method to convert octal to binary?
Direct substitution for each octal digit using a 3-bit group from the chart is the fastest and most accurate. No complex calculations are needed; just substitute in reverse order if needed. - Can I convert octal to binary via decimal?
Yes, but it is less efficient. You first transform octal to decimal using the place value formula \(\sum_{i=0}^{n-1} d_{i} \times 8^{i}\), then convert the decimal number to binary by repeated division by 2. - Why are octal and binary conversions important in technology?
Many old computer platforms and select new devices use octal notation for brevity, and binary code is the direct language of machines. Fast octal to binary conversion is essential for reading machine-level data, coding microcontrollers, or checking protocols. Understanding both base 8 and base 2 is critical for troubleshooting. - How many symbols do I need for large octal numbers?
Each octal digit equals three binary characters—or "bits," so length triples for most transformations. For accurate computation, always count bits and pad leading zeros if needed—the equivalent binary number may require 3 binary digits per symbol.
Why the Direct Substitution Method Works
The direct octal to binary conversion shortcut isn't a coincidence or a trick — it works because 8 is exactly 23. Any base that is a power of another base converts through fixed-size digit groups instead of an intermediate decimal step, which is exactly why octal (base 8) and hexadecimal (base 16) both convert directly to and from binary (base 2), while a base like decimal or Base36 does not. Every octal digit covers exactly the same range as 3 binary digits (0–7 versus 000–111), so the mapping is always one-to-one and never requires carrying or borrowing across digit groups — the same property that makes hex to binary conversion a direct substitution too, just with 4-bit groups instead of 3-bit ones.
