IP Address to Hex Converter

Type a standard address like 192.168.1.1 into the IPv4 Address Input field and the IP Address to Hex Converter converts it into its 8-digit hex form. Click Convert and the value appears in Hex Output, with uppercase and byte-grouping options if you need them. The bcd to decimal converter reads each 4-bit nibble of a binary-coded decimal value and turns it back into a plain decimal digit.

IP to Hex Converter Basics: How IP Addresses Map to Hex Format

What Makes an IP Address Unique in Networking?

A standard IPv4 location is composed of four octets—each ranging from 0 to 255—formatted in dotted decimal notation like 192.168.1.1. This notation is both human-readable and a universal unique identifier within a network. The four octets together result in a 32-bit internet identifier. If you dig deeper, that means the address can be stored and transferred in various forms: Before writing rgb() into a stylesheet, run the color through the hex to rgb converter to confirm the exact channel values.

  • Decimal format: Each octet between the dots (like 192, 168, 1, 1).
  • Hexadecimal: IPs can also be written in hexadecimal 0x notation, accepted by routers and embedded systems.
  • Binary: Useful in low-level protocol programming and debugging packets.
  • Octal notation: Sometimes seen in legacy or specialized systems.

Each ip address must be globally, or at minimum, internally unique within its local environment, making correct conversion and validation essential for testing, proxy configuration, and more.

IPv6 locations use 128 bits and are almost always expressed directly in hexadecimal (base-16) because their length and value range are impractical for decimal notation. However, this encoder primarily targets IP version 4 addresses.

Hexadecimal (Base-16) Number System in Networking

The hexadecimal system is base-16, using digits 0–9 and letters A–F to represent values 10–15. Its use is deeply embedded in computer protocols, hardware, and network protocols because it efficiently expresses large binary numbers in a compact, readable way. Each hex digit represents four binary bits, so an 8-digit hex number exactly covers 32 bits of an internet identifier:

  • Hex numbers (base-16) are a direct translation from binary, making them ideal for routing tables, firewall configuration files, and programming parsers.
  • Hex notation (with a 0x prefix, e.g., 0xC0A80101) is universal among scripting, code, and configuration utilities.

Web developers and programmers often work with hex values in automated tools, calculators, or even when parsing HTML and JSON records. Modern HTML standards ensure such encoded values are readable across platforms, and HTML is often used for presenting protocol information in GUIs.

Convert IP to Hexadecimal: Methods, Formula, and Step-by-Step Conversion

Step-by-Step: How Each Octet Is Processed with the IP to Hex Converter

The process the ip to hex converter follows is a classic number system conversion:
When you need uppercase A-F letters in your hex output, the binary to hex converter has a toggle built in for that.

  • Each octet (group between dots) is individually converted from decimal to hex using a decoder.
  • All four hex values are combined in network (big endian) order, optionally with or without seperators.

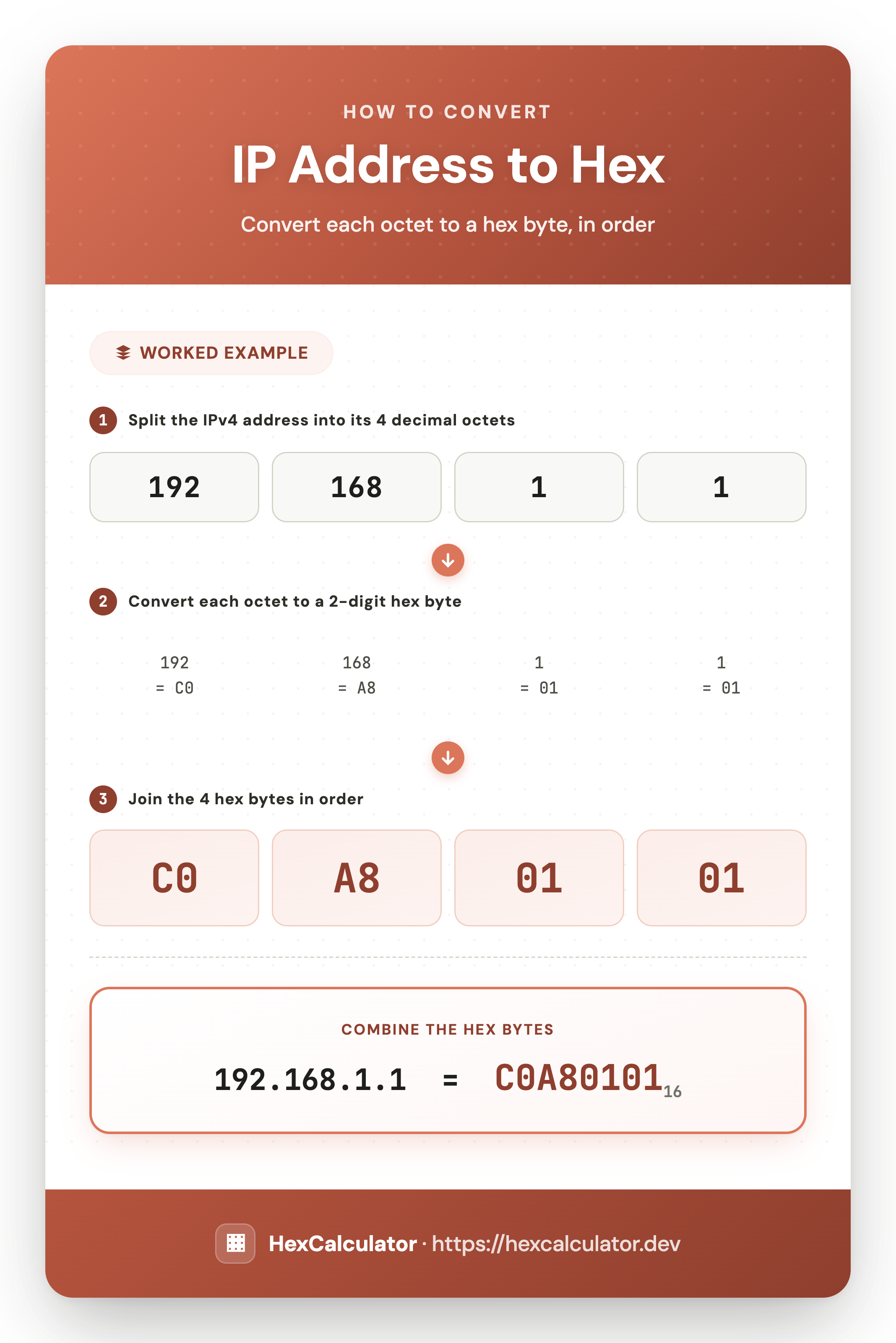

Worked Example: 192.168.1.1
192      .      168      .      1      .     1
 C0             A8             01         01
  • Step 1: Convert each decimal octet to two hex digits using decimal to hex techniques, handled by an encoder tool.
  • Step 2: Concatenate the hex digits: C0A80101 (hex number primary output).
  • Step 3: Prefix with 0x for standard representation (0xC0A80101).

This output allows routers, browser scripts, or proxy filters to match hosts at a lower system level, and is widely used for protocol parsing or automated testing scenarios, especially among web developer communities.

IP to Hexadecimal Conversion Formula and Examples

The core formula for converting an ip location to a hex representation is based on number base conversions:

Hexadecimal = (Decimal_Octet_1 << 24) | (Decimal_Octet_2 << 16) | (Decimal_Octet_3 << 8) | (Decimal_Octet_4)

Or, step-by-step in math notation:

$$ \text{Hex Value} = (a \times 256^{3}) + (b \times 256^{2}) + (c \times 256^{1}) + (d \times 256^{0}) $$

Then use an encoder to get an ip in the hexadecimal base. For example, to hex ip to decimal converter for 127.0.0.1:

  1. Identify octets: 127, 0, 0, 1
  2. Apply formula: 127 × 256^3 + 0 × 256^2 + 0 × 256^1 + 1 × 256^0 = 2130706433
  3. Convert 2130706433 to hex: 0x7F000001

For a dotted hex ip representation:

127.0.0.1 → 7F.00.00.01

Required Options & Common Pitfalls with IP to Hexadecimal Conversion

  • Input format: Only valid IPv4 values in dotted decimal notation, with each octet between 0 to 255, are supported by most online ip to hex converter tools.
  • Invalid IPs: The encoder checks if an IP is valid; invalid entry will be flagged and won’t convert.
  • Hex output options: Some utilities allow you to choose between standard 0x prefix, get a dotted hex ip (c0.a8.01.01), or compact hex (c0a80101).
  • Endian order: IPv4 is always processed in big endian; switching to little endian will change the hex value.
  • Padding: Each group must become two hex digits (01, not 1).
Tip for advanced users
You can use query string syntax like ?input=192.168.1.1 with most online tools to quickly get an ip in the hexadecimal base programmatically.

Online IP to Hexadecimal Converter: Real-World Applications and Testing

Browser & Proxy Testing Scenarios for Developers

One standout use for the ip to hex converter comes from cross-browser testing and configuration verification by web developers and programmers. Sometimes, a HTML form or security script in scripting code may only validate the standard decimal ip location, ignoring other notations. By using hexadecimal ip entry (such as 0xC0A80101), you can: Developers converting a legacy stylesheet to Tailwind can look up each color's nearest class with the hex to tailwind converter.

  • Create tests for validation on both decimal and hexadecimal values.
  • Bypass someone else’s ip checkers by supplying a hex ip if allowed.
  • Check if the front-end and back-end both process all possible address forms correctly.

This is critical not only for testing browsers like Chrome, Firefox, Edge, and Safari but also for cross-browser scripting of form input and URI parsing—especially for those using HTML interfaces.

Pro Tip: If you have a proxy or router that accepts a host entry in hex form, using the ip to hex converter lets you automate checks via scripts, or create robust API tests.

Firewall and Routing Table Configurations Benefit from Hexadecimal Notation

Firewall configuration files and core routing tables in routers or operating systems often require locations in hexadecimal representation for easy parsing by code. Examples include:

  • iptables rules for linux servers may allow hexadecimal endpoint definitions.
  • Routing configurations using hex values to speed up host matching and lookup.
  • Custom device firmware that accepts hex or binary entry for embedded packets.
Network Packet Example
Firewall rule: allow src 0xC0A80101 → matches 192.168.1.1 in hex

Here, using the ip to hex converter eliminates guesswork, ensuring input matches protocol hardware expectations. It also allows you to compare IPs quickly regardless of notation used, boosting reliability when working with advanced or internal segment scenarios.

Embedded Systems, Network Packets, and Advanced Tools

For embedded systems engineers, hex ip values are central. Many microcontrollers handle endpoint parsing at the hexadecimal or binary level to maximize efficiency:

  • Hexadecimal encoding reduces memory and bandwidth versus pure text.
  • Binary and hex values flow directly in protocol packets, making it easier to decode or analyze traffic.
  • Most online tools or calculator apps can translate between binary, hex, decimal, and octal IP forms, offering interoperability for automation or debugging tasks with an encoder or decoder utility.

If you’re building an ip checker, sniffing raw protocol from wire, or working on statistics for address notation usage, converting an ip location to hexadecimal values with this encoder opens up powerful workflow options—unifying tools that operate at both form and code levels. Encoders and decoders simplify transitions between hex and decimal, boosting productivity.

Convert an IP Address to Hex: Examples, Reverse Conversion, and Related Tools

Worked Examples: Decimal IPs to Hexadecimal and Dotted Hex IPs

Let’s walk through some step-by-step explanations using the ip to hex converter:

  1. Convert 127.0.0.1 (loopback) to hexadecimal:
    1. Break into octets: 127, 0, 0, 1
    2. Convert each to hex:
      127 = 7F;
      0 = 00;
      1 = 01
    3. Result: 0x7F000001 (dotted hex ip: 7F.00.00.01)
  2. Convert 192.168.1.1 to hex number (for firewall configs):
    1. Octets: 192, 168, 1, 1
    2. Convert: 192 = C0; 168 = A8; 1 = 01
    3. Combine: 0xC0A80101 or dotted hex: C0.A8.01.01
  3. Convert several decimal hosts (as in some bulk log analysis):
    • 127.127.127.127 → 0x7F7F7F7F
    • 172.16.4.28 → 0xAC10041C
    • 255.255.255.255 → 0xFFFFFFFF
192.168.1.1 → 0xC0A80101
127.0.0.1 → 0x7F000001
255.255.255.255 → 0xFFFFFFFF

Reverse: Hexadecimal to IP Converter Tool (from Hexadecimal to IP Address)

Using a hexadecimal to IP converter tool or online decoder, you can decode a hexadecimal IP value back to its decimal octets.

Worked Example: Convert 0x0A000001 to IP location
  1. Strip 0x prefix and split hex: 0A 00 00 01
  2. Use a decoder to transform hex to decimal:
    0A = 10; 00 = 0; 00 = 0; 01 = 1
  3. Assemble: 10.0.0.1

This workflow allows you to convert ip address notations in either form, crucial for testing and traffic analysis. Try it for other hex values like 0xC0A80101 (you get 192.168.1.1).

Explore More: Decimal, Binary, and Octal IP Address Tools

  • IP to Decimal Converter — convert ip address to its single integer for coding or DB storage.
  • IP to Binary Converter — View the full 32-bit representation for lower-level scripting.
  • IP to Octal Converter — For legacy or specialized environments using eight-based numbering.
  • Hex to Binary Converter — Useful for hardware engineers and debugging.
  • Hex to Decimal Converter — Cross-verify hex output with decimal or ingest into another program.
  • Binary to Hex Converter

This suite of encoder and decoder tools covers each number system—making it easy to analyze or convert ip address in any representation relevant to your application or HTML projects.

Frequently Asked Questions: Advanced IP to Hexadecimal Converter Insights

  • Q1: Can this tool convert IPv6 addresses?
    Most standalone converters focus on IP version 4 only. IPv6 is natively hexadecimal, so conversion is direct, but some utilities may not support the extended identifier length—always check tool documentation.
  • Q2: Why is my ip address invalid?
    This happens if the entry fails to meet the correct format rules: four groups (0–255), separated by the dot character. Scripts and validation in HTML forms can catch these. Use the step-by-step explanation above to troubleshoot.
  • Q3: What does the “0x” prefix mean?
    In hex notation, 0x signals the number is base-16. It's the standard in programming languages and routing tables (0xC0A80101), ensuring your tool recognizes the input as a hexadecimal value.
  • What is the output?
    You’ll see your ip location converted to a continuous hex value (e.g., 0xC0A80101), or, in some form options, as a dotted hex ip.
  • How do I press the convert to hex button?
    Most online tools provide an HTML form—just paste your ip, press the convert button, and instantly get the output in hexadecimal.
  • What tools support this conversion?
    Options abound: from online ip to hex converter utilities, browser-based encoders or decoders, to downloadable calculator applications and scripting libraries in Python and Java.
  • Does the encoder handle internal or reserved IP locations?
    Yes, any syntactically valid identifier—including ranges reserved for personal or loopback hosts—will convert accurately. Examples: 10.0.0.1 (internal) → 0x0A000001, 127.0.0.1 (loopback) → 0x7F000001.

For further details, read the documentation on hexadecimal notation or explore hexadecimal to ip converter tool guides. Still have a doubt? Consult the full FAQ page for every advanced scenario!
